Aluminium Notching Machine 5M Aluminium Profile Cnc Machine

Large Image : Aluminium Notching Machine 5M Aluminium Profile Cnc Machine

Product Details:

Place of Origin:	China
Brand Name:	WEIKE CNC
Certification:	CE ISO
Model Number:	WJK-500

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10500 USD
Packaging Details:	Plywood Box
Delivery Time:	10 Working Days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	20 Sets / Month

Contact Now

Aluminium Notching Machine 5M Aluminium Profile Cnc Machine

Description

Power:

2.2KW×2

Operation Air Pressure:

0.5~0.8MPa

Sawing Range:

150mm

Saw Blade Diameter:

500mm

Highlight:

0.5MPa Aluminium Notching Machine

Aluminium Notching Machine 5M

5M Aluminium Profile Cnc Machine

aLUMINUM PROFILE NOTCHING SAW

The aluminum curtain wall interface cutting saw is used for processing the end angle of aluminum curtain wall and daylighting skylight profile. It is simple to operate, reliable in performance, advanced in technology, and easy to maintain.

Main Feature

●The aluminum curtain wall interface cutting saw adopts a spindle motor, a high-precision motor is directly connected to the saw blade, and the hard alloy saw blade is used to cut more stably, with high production efficiency and high processing accuracy.

●The aluminum curtain wall interface cutting saw is equipped with a magnetic ruler control system to realize the digital display of the cutting angle and the height of the worktable.

Power supply

Power

Operatlcn air pressure

Sawing range

Saw blade specification

Sawing angle

Maximum speed

Dimension

380V/50HZ

2.2KW×2

0.5-0.8MPa

150mm

Φ500×4.4×Φ30×120Tmm

-45° ~45°

2850r/min

3140x1380x1800mm

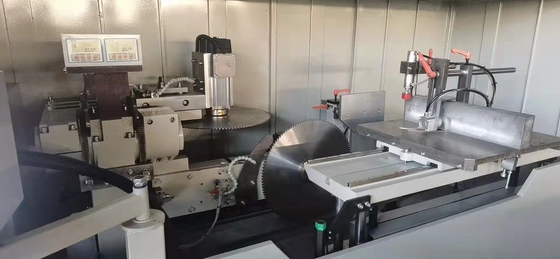

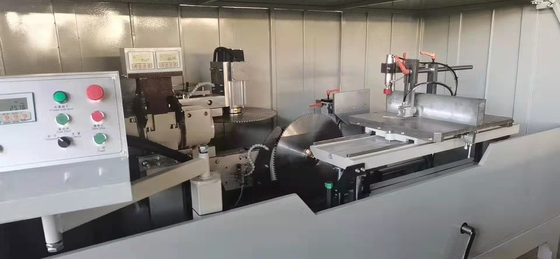

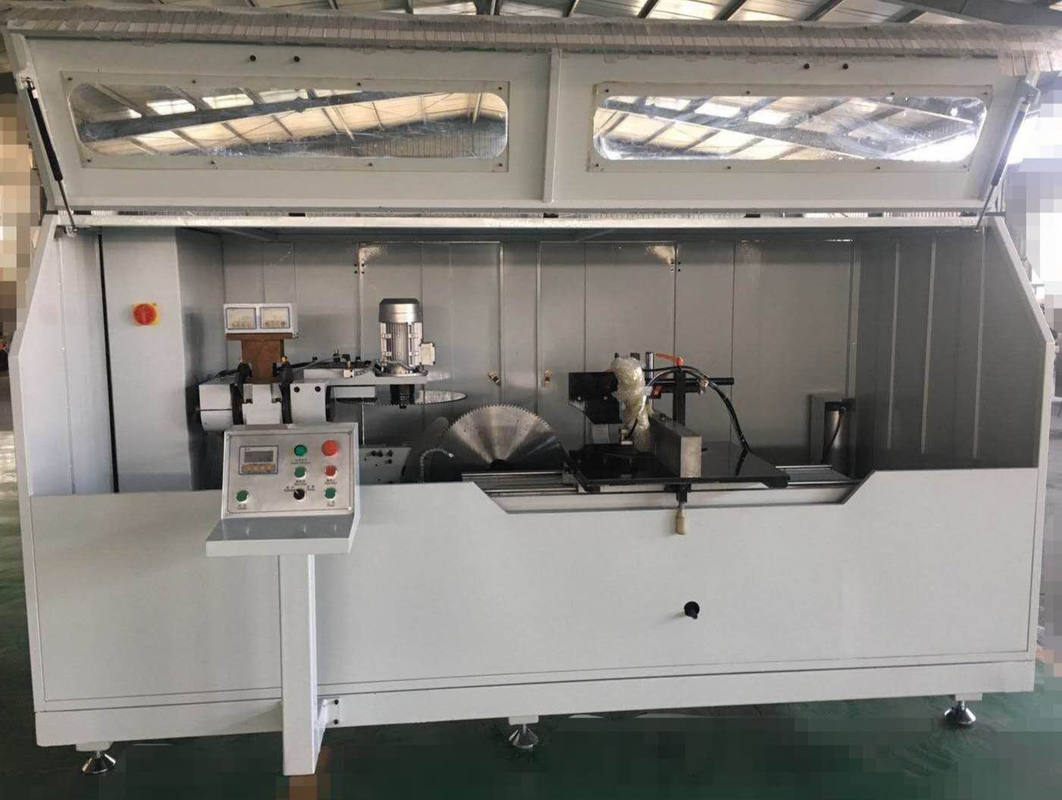

Machine Details

Aluminium Notching Machine 5M Aluminium Profile Cnc Machine 1
