Aluminium Profile Machining Center 175mm Aluminium Windows Machine 90 Degree

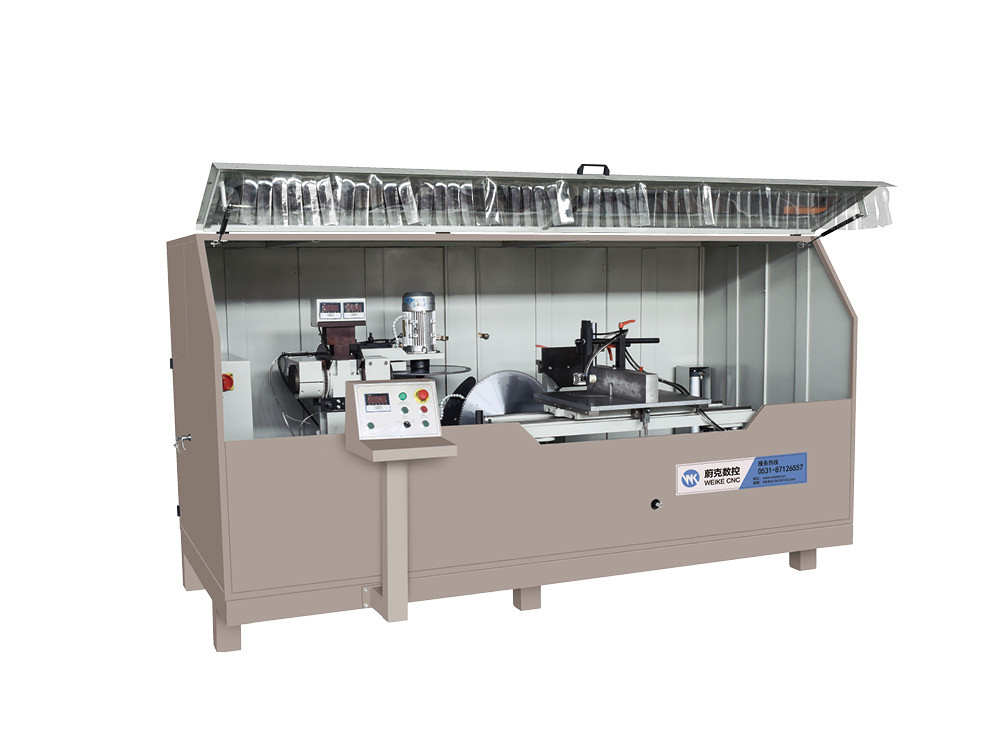

Large Image : Aluminium Profile Machining Center 175mm Aluminium Windows Machine 90 Degree

Product Details:

Place of Origin:	China
Brand Name:	WEIKE CNC
Certification:	CE ISO
Model Number:	WJK-550

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	11800 USD
Packaging Details:	Plywood Box
Delivery Time:	10 Working Days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	10 Sets / Month

Contact Now

Aluminium Profile Machining Center 175mm Aluminium Windows Machine 90 Degree

Description

Power:	3KW×2	Operation Air Pressure:	0.5~0.8MPa
Sawing Range:	175mm	Saw Blade Diameter:	550mm
English Manaul:	Provided	Video Training:	Provided
Highlight:	50HZ Aluminium Profile Machining Center , Aluminium Profile Machining Center 175mm , 175mm Aluminium Windows Machine

Aluminium profile NOTCHING SAW

Alloy Profile Interface Cutting Saw designed for working with end face of aluminum profile and daylighting skylight profile. The cutting angle can changed from -45 to +45 degree, most clients use this machine to cutting vertical 90 and horizonal 90 degree. Working speed is very fast

Main Feature

●The allloy curtain wall interface notching saw adopts spindle motor, have high-precision motor is directly connected to the saw blade, and the hard alloy saw blade is used to cut more stably, with high production efficiency and high processing accuracy.

●The alu curtain wall interface cutting saw is equipped with a magnetic ruler control system to realize the digital display of the cutting angle and the height of the worktable.

Power supply

Power

Operatlcn air pressure

Sawing range

Saw blade specification

Sawing angle

Maximum speed

Dimension

380V/50HZ

3KW×2

0.5-0.8MPa

175mm

Φ550×4.4×Φ30×120Tmm

-45° ~45°

2850r/min

3140x1380x1800mm

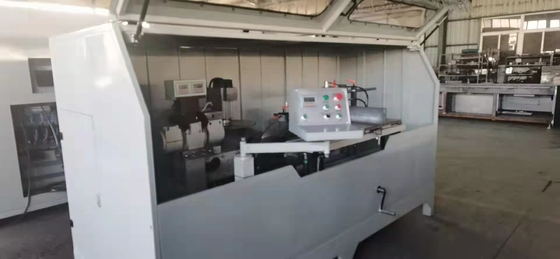

Interface Notching Saw Machine Details

Aluminium Profile Machining Center 175mm Aluminium Windows Machine 90 Degree 1
