Product Details:
|
| Dimension(L*W*H): | 9800*2500*2800mm | Spindle Power: | 9.5kw |
|---|---|---|---|
| Working Size: | X/Y/Z> 6500*400*300mm | Working Voltage: | 380V 3Ph 50Hz Or Customized |
| Material: | Aluminum | Cnc Machining Or Not: | CNC Machining |

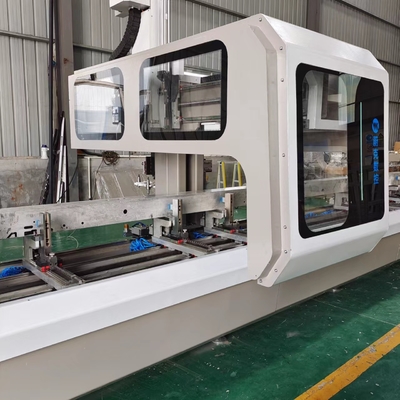

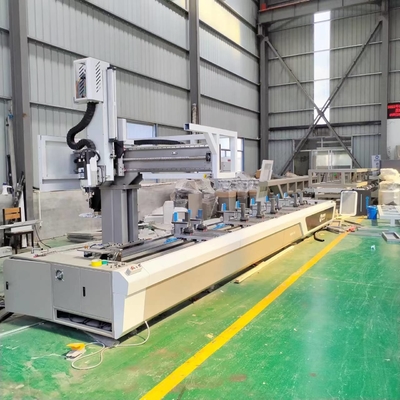

The 4 Axes CNC Machining Center, has the capacity to process Aluminum profiles of various sizes, thanks to its Italain spindle, which allows machining at any angle between -90 /+90 degrees providing solutions in a wide range of operations.
The machine is developed to carry out all-in-one milling, drilling, machining, end milling operations on profiles, and to perform various operations on industrial profiles.The wide machining capacity 400*300mm provides satisfactory user experience with the machines' performance in all operations.
We also provide customization services, and customize different sizes, colors, LOGO, etc. according to customer needs. We do our best to do every machine well to meet the processing needs of different customers.
1. Equipment Features
1. Used for performing milling, drilling, machining, end milling processing on aluminum and PVC profiles.
2. Non-standard specific operations on different profiles
3. CNC based control system

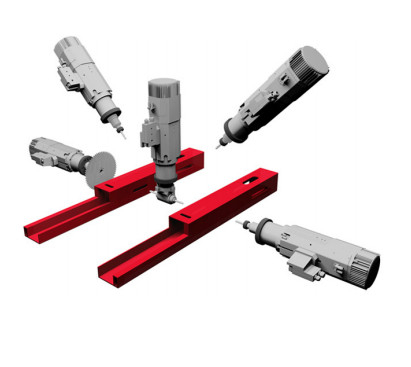

4. Precise process at any angle between -90° and +90°
5. Automatic tool replacement
6. Ability to perform processing in two separate zones
7. Automatic magazine for 12 tools
8. Automatic clamping positioning
| Product Parameter | |
| Tools magazine | 12 Milling drilling bits |
| Table structure | Heavy duty welded machine body with clamping tooling on it special for clamping aluminum profile |
| Working Size | X/Y/Z> 6500*400*300mm |
| Maximum speed | 24000/min |
| Processing length | 6500mm |
| Processing width | 400mm |
| Processing height | 300mm |
| Control System | Germany HANS PA industrial CNC system is equipped with professional CAD-CAM programming software |
| Lubrication system | Auto lubrication pump |
| Tool setting | Automatic tool setting |
| Electric Components | French Schneider AC contactor, Taiwan Airtac electromagnetic valve |
| Working voltage | 380V 3Ph 50Hz |
| Size | 9500*2500*2800mm |
| Weight | 4500kg (more or less) |
| Machine function |
End milling, lock holes, water slots, install hole... Auto tool changer Auto tool setting |
2.Other products
3.Mechanical details and after working samples
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1. Why is it called 4 axes machining centre ? What are the functions?
2. What are the advantages of 4 axes over 3 axes?
3. Are there training instructions?
4. How long is the warranty?
5. Can the 4 axes be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
