Product Details:
|
| Dimension(L*W*H): | 9800*2500*2800mm | Control System: | HANS PA Industrial CNC System |
|---|---|---|---|
| Drive And Servo Motor: | Japan YASKWA | Processing Length: | 6500mm |
| Processing Width: | 400mm | Processing Height: | 300mm |
| Equipment: | CNC Machining Center |
1. Equipment Features
1. CNC automation system providing motion control at 4 axis.
2. Optimum safety barier.
3. Program import via USB flash memory stick.
4. Automatic clamp recognition and clamp positioning are available.
5.Hand held controller allows you to prove the job before running at speed.
6.Automatic magazine for 11 tools and 1 for saw blade with 300 mm dia.
7. Standard ISO ‘G’ code programming language
8. Solid steel construction of the body and dynamic performance gantry.
9. Special sound insulation cabinet around the machining center.

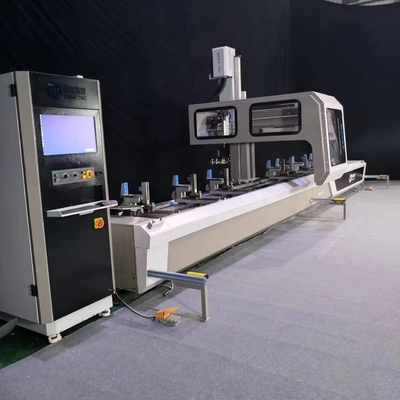

The Axes 4 machining center with a magazine for 12 tools was designed to perform drilling and milling operations on aluminum profiles. Thanks to the solutions used in its construction, Axes 4 is suitable for machining large section profiles. The 24,000 rpm, 9.5 kW electrospindle allows the removal of a significant quantity of chips and high machining speeds.
| Product Parameter | |
| Tools magazine | 12 Milling drilling bits |
| Table structure | Heavy duty welded machine body with clamping tooling on it special for clamping aluminum profile |
| Working Size | X/Y/Z> 6500*400*300mm |
| Maximum speed | 24000/min |
| Processing length | 6500mm |
| Processing width | 400mm |
| Processing height | 300mm |
| Control System | Germany HANS PA industrial CNC system is equipped with professional CAD-CAM programming software |
| Lubrication system | Auto lubrication pump |
| Tool setting | Automatic tool setting |
| Electric Components | French Schneider AC contactor, Taiwan Airtac electromagnetic valve |
| Working voltage | 380V 3Ph 50Hz |
| Size | 9500*2500*2800mm |
| Weight | 4500kg (more or less) |
| Machine function |
End milling, lock holes, water slots, install hole... Auto tool changer Auto tool setting |
2.Other products

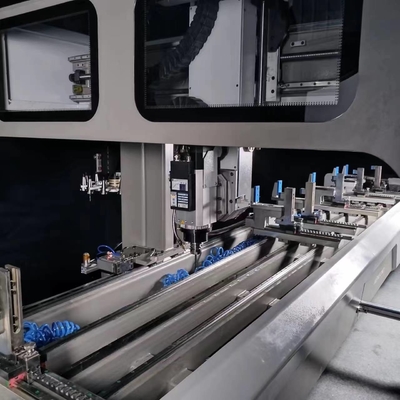

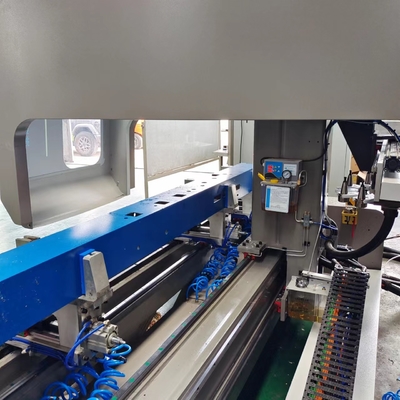

3.Mechanical details and after working samples
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1. Why is it called 4 axes machining centre ? What are the functions?
2. What are the advantages of 4 axes over 3 axes?
3. Are there training instructions?
4. How long is the warranty?
5. Can the 4 axes be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
