Product Details:
|
| Spindle Power: | 9kw | X Axis Travel: | 3200mm |
|---|---|---|---|
| Y Axis Travel: | 400mm | Z Axis Travel: | 300mm |
| Processing Range: | 130*150mm | Cnc Machining Or Not: | CNC Machining |

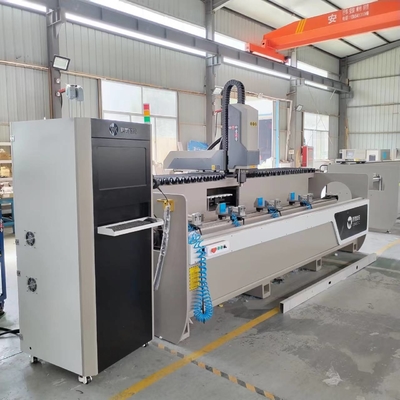

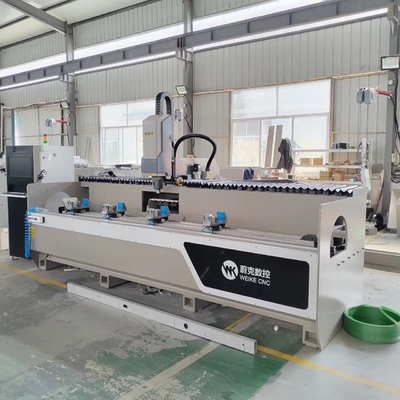

The 3-axis CNC machining center adopts 9KW Italian spindle, the worktable can be turned 180 degrees, and the profile can be processed on three sides once clamping. The machine is specially developed for the integrated processing of the profile, such as milling, drilling, machining and end milling, as well as various operations on the industrial profile.
We also provide customized services, customized according to customer requirements of different sizes, colors, logos and so on. We do our best to make every machine to meet the processing needs of different customers.
1. Equipment Features
1. Suitable for drilling, milling, round holes, special-shaped holes, plane engraving and other processing of aluminum alloy profiles;
2. The X axis is driven by high-precision helical gears and helical racks, and the Y-axis and Z-axis are driven by high-precision ball screws, with stable transmission and high precision;
3. The machine adopts the Han's (PA) machine tool numerical control system and the special CAM editing software for 3D modeling display, which can optimize the travel path. It can complete continuous automatic milling of profiles of different specifications and sizes. It has powerful functions. It is convenient and easy to import CAD drawings into the system.

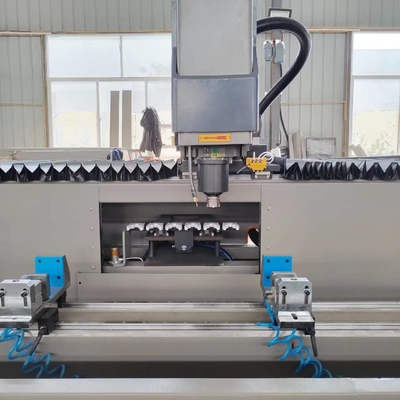

4. The drawer-type 6-position tool magazine ensures uninterrupted continuous processing.
| Product Parameter | |
| Tools magazine | 6 Milling drilling bits |
| Table structure | Heavy duty welded machine body with clamping tooling on it special for clamping aluminum profile |
| Working Size | X/Y/Z> 3200*400*300mm |
| Maximum speed | 24000/min |
| X axis speed | 60M/min |
| Y axis speed | 40M/min |
| Z axis speed | 40M/min |
| Control System | Germany HANS PA industrial CNC system is equipped with professional CAD-CAM programming software |
| Lubrication system | Auto lubrication pump |
| Tool setting | Automatic tool setting |
| Electric Components | French Schneider AC contactor, Taiwan Airtac electromagnetic valve |
| Working voltage | 380V 3Ph 50Hz |
| Size | 4000*1600*2600mm |
| Weight | 2100kg (more or less) |
| Machine function |
End milling, lock holes, water slots, install hole... Auto tool changer Auto tool setting |
2.Other products
3.Mechanical details and after working samples
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1. Why is it called 3 axes machining centre ? What are the functions?
2. What are the advantages of 3 axes?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
