Product Details:
|
| Spindle Power: | 9kw | Maximum Speed: | 24000/min |
|---|---|---|---|
| Tool Magazine: | 5 Tools + A Saw Blade | Cnc Machining Or Not: | CNC Machining |
| Working Size: | X/Y/Z> 3200*400*300mm | Weight: | 2100kg （more Or Less） |

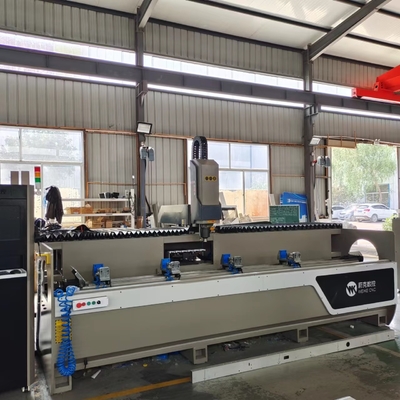

3 Axes Machining centre, designed for machining bars or parts made of aluminium, PVC, light alloys, equipped with 6 tool magazines capable of machining on 3 sides of w130mm x h150mm section. It can work on profiles up to 3200 mm long. The worktable is turned 180°, -90°～0°～+90°, and the profile can be processed on three sides by one clamping. When processing deep through holes (special-shaped holes), deep hole processing can be realized by turning the worktable, which improves efficiency and good quality.
1. Equipment Features
1. Used for milling, drilling, machining, end milling processing on aluminium and UPVC profiles.
2. Non-standard specific operations on different profiles
3. CNC based control system
4. The worktable is turned 180°, -90°～0°～+90°
5. Automatic tool replacement
7. Automatic magazine for 6 tools
8. Automatic clamping positioning
| Product Parameter | |
| Tools magazine | 6 Milling drilling bits |
| Table structure | Heavy duty welded machine body with clamping tooling on it special for clamping aluminum profile |
| Working Size | X/Y/Z> 3200*400*300mm |
| Maximum speed | 24000/min |
| X axis speed | 60M/min |
| Y axis speed | 40M/min |
| Z axis speed | 40M/min |

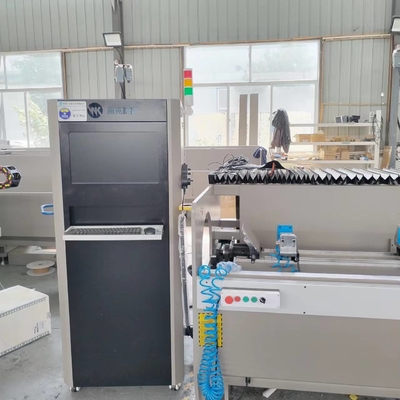

| Control System | Germany HANS PA industrial CNC system is equipped with professional CAD-CAM programming software |
| Lubrication system | Auto lubrication pump |
| Tool setting | Automatic tool setting |
| Electric Components | French Schneider AC contactor, Taiwan Airtac electromagnetic valve |
| Working voltage | 380V 3Ph 50Hz |
| Size | 4000*1600*2600mm |
| Weight | 2100kg (more or less) |
| Machine function |
End milling, lock holes, water slots, install hole... Auto tool changer Auto tool setting |
2.Other products

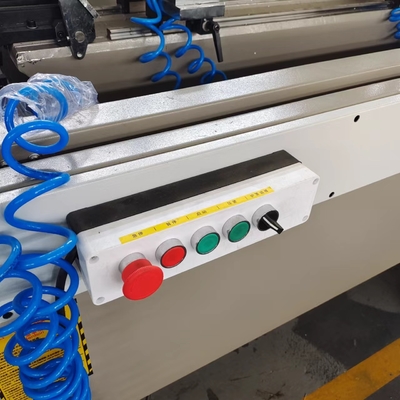

3.Mechanical details and after working samples
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1. Why is it called 3 axes machining centre ? What are the functions?
2. What are the advantages of 3 axes?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
