Product Details:
|
| Name: | 3 Axis CNC Machining Center | Total Power: | 11.25KW |
|---|---|---|---|
| Air Pressure: | 0.6～0.8Mpa | Working Voltage: | 380V 3Ph 50Hz Or Customized |

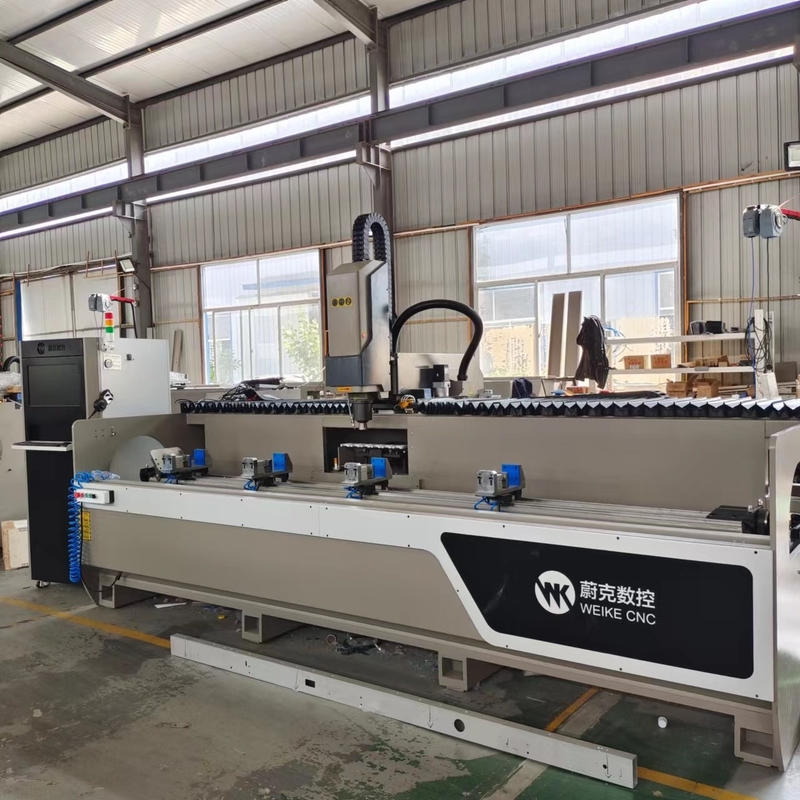

The 3-axis CNC drilling and milling center is suitable for the processing of industrial aluminum alloy profiles, round holes, slot holes, key holes, special-shaped holes, etc., automatic tool change, automatic positioning, saving time. The 24,000 rpm, 9kW motor spindle can remove large amounts of chips and perform high-speed machining.
1. Equipment Features
1. The spindle adopts an air-cooled electric spindle, with a power of 9KW and a speed of 6000-24000 rpm/min, with high precision, good safety and high reliability.
2. The PA industrial CNC system is equipped with professional CAD-CAM programming software, with powerful functions, simple operation and high efficiency.
3. Standard equipped with 6 tool magazines, which can realize continuous and uninterrupted processing.
4. The worktable can be turned over 180°, -90°～0°～+90°, and the profile can be processed on three sides by one clamping. When processing deep through holes (special-shaped holes), deep hole processing can be realized by turning the worktable, which improves efficiency, Good quality.
5. The automatic mercury oil supply system is adopted, and the tool adopts a system-controlled spray cooling device.
6. The main components of the machine tool are of steel structure, all of which have undergone vibration aging stress relief treatment.
| Product Parameter | |
| Tools magazine | 6 Milling drilling bits |
| Table structure | Heavy duty welded machine body with clamping tooling on it special for clamping aluminum profile |
| Working Size | X/Y/Z> 3200*400*300mm |
| Maximum speed | 24000/min |
| X axis speed | 60M/min |
| Y axis speed | 40M/min |
| Z axis speed | 40M/min |
| Control System | Germany HANS PA industrial CNC system is equipped with professional CAD-CAM programming software |
| Lubrication system | Auto lubrication pump |
| Tool setting | Automatic tool setting |
| Electric Components | French Schneider AC contactor, Taiwan Airtac electromagnetic valve |
| Working voltage | 380V 3Ph 50Hz |
| Size | 4000*1600*2600mm |
| Weight | 2100kg (more or less) |
| Machine function |
End milling, lock holes, water slots, install hole... Auto tool changer Auto tool setting |
2.Other products

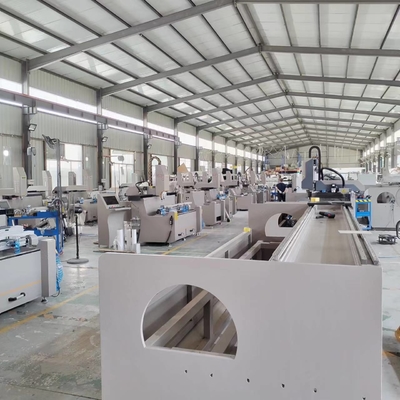

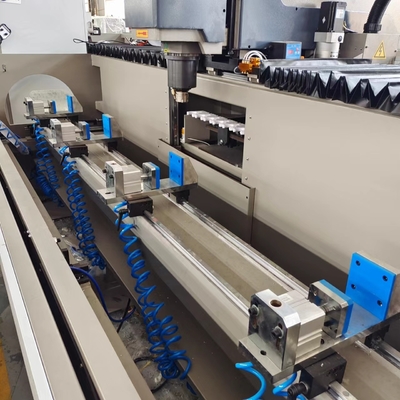

3.Mechanical details and after working samples
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1. Why is it called 3 axes machining centre ? What are the functions?
2. What are the advantages of 3 axes?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
