Product Details:
|
| Name: | 3 Axis CNC Machining Center | Spindle Power: | 9kw |
|---|---|---|---|
| X Axis Speed: | 60M/min | Y Axis Speed: | 40M/min |
| Z Axis Speed: | 40M/min | Working Size: | X/Y/Z> 3200*300*200mm |

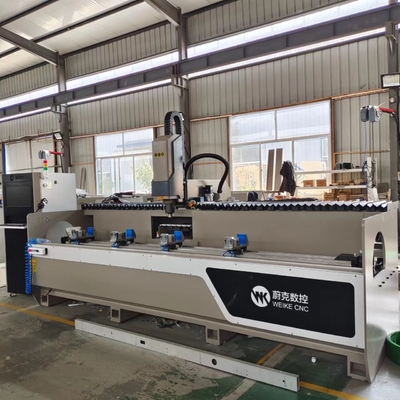

3 Axis Machining centre, used for the working of bars of aluminium, PVC, UPVC .It has a 6 place (optional one saw blade) tools storage, to perform machining on the 5 sides of the piece. The standard work table can be turned over 180°, -90°～0°～+90°.
3 Axe=is Machining centre is multifunction machines able to perform multiple high precision machining operations such as milling, drilling, and tapping, on unfinished profiles by means of specific tools. By CNC controller the machining centre guarantees the maximum precision while also reducing processing times and production costs.
1. Equipment Features
1. The automatic mercury oil supply system is adopted, and the tool adopts a system-controlled spray cooling device.
2. The PA industrial CNC system is equipped with professional CAD-CAM programming software, with powerful functions, simple operation and high efficiency.

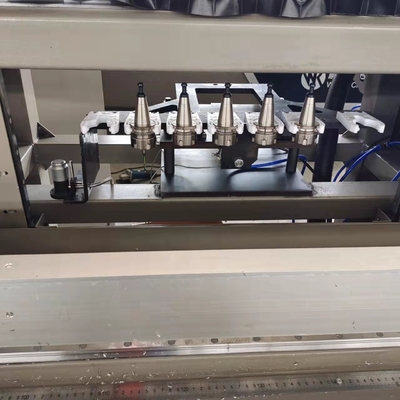

3. Standard equipped with 6 tool magazines, which can realize continuous and uninterrupted processing.
4.The spindle adopts an air-cooled electric spindle, with a power of 9KW and a speed of 6000-24000 rpm/min, with high precision, good safety and high reliability.
| Product Parameter | |
| Tools magazine | 6 Milling drilling bits |

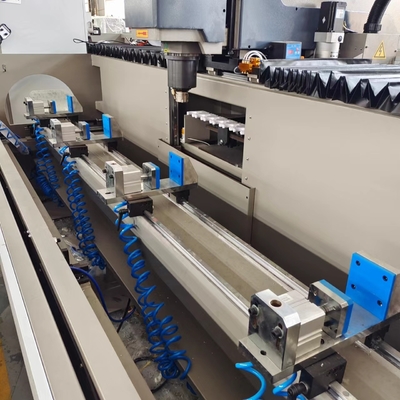

| Table structure | Heavy duty welded machine body with clamping tooling on it special for clamping aluminum profile |
| Working Size | X/Y/Z> 3200*400*300mm |
| Maximum speed | 24000/min |
| X axis speed | 60M/min |
| Y axis speed | 40M/min |
| Z axis speed | 40M/min |
| Control System | Germany HANS PA industrial CNC system is equipped with professional CAD-CAM programming software |
| Lubrication system | Auto lubrication pump |
| Tool setting | Automatic tool setting |
| Electric Components | French Schneider AC contactor, Taiwan Airtac electromagnetic valve |
| Working voltage | 380V 3Ph 50Hz |
| Size | 4000*1600*2600mm |
| Weight | 2100kg (more or less) |
| Machine function |
End milling, lock holes, water slots, install hole... Auto tool changer Auto tool setting |
2.Other products
3.Mechanical details and after working samples
4. Our services
1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
2. Provide free training when come to factory study.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1.Are there training instructions?
2. How long is the warranty?
3. Why is it called 3 axes machining centre ? What are the functions?
4. What are the advantages of 3 axes?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
