China Factory Supply CNC Machining Center For Aluminum Drilling Milling Holes

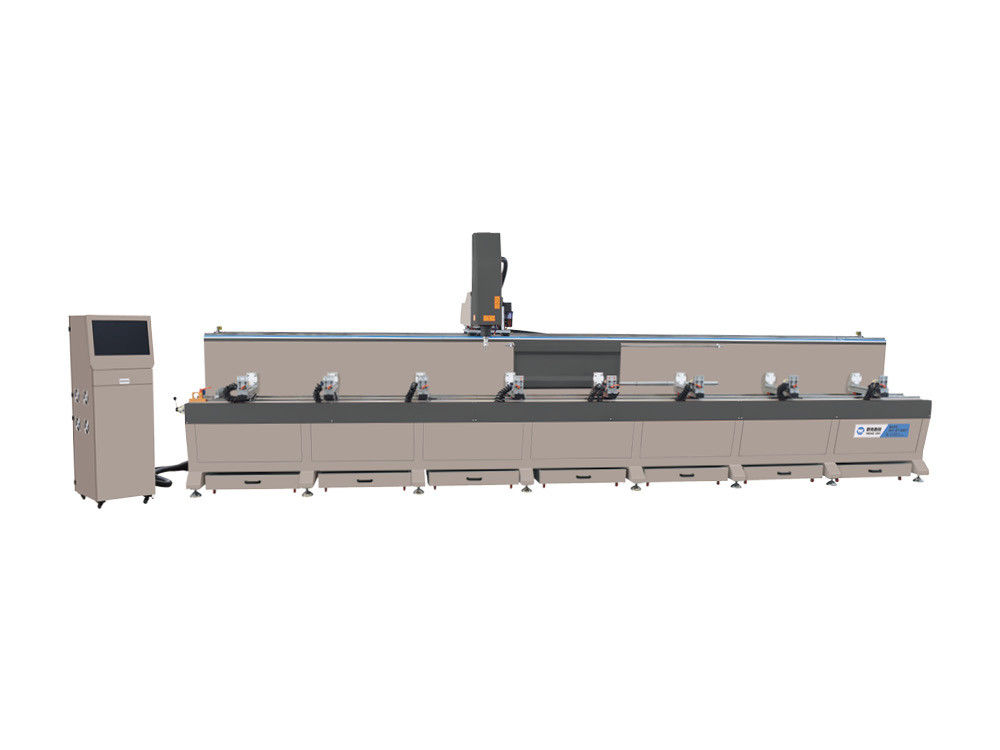

                                 5500mm ATC Aluminum Profile CNC Machining Center

Working center for aluminium profiles with 3 controlled, fully automatic management of machining such as drilling, milling,tapping, grooving, notching,saw milling etc.

Working Area: 2500mm 3000mm 3200mm 5500mm 6000mm 6500mm 7000mm Option

1. Main Feature For Aluminium Drilling Milling Machines

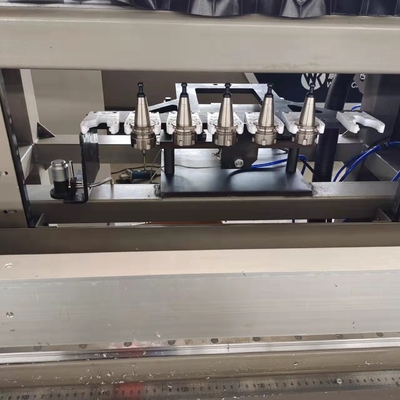

●The preferred 6-bit/8-bit device mag can comprehend non-stop and uninterrupted machining. It is appropriate for the processing of spherical holes, slot holes, key holes, special-formed holes of commercial aluminum alloy profiles, doorways and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, aircraft engraving and different processes.The computerized mercury oil deliver machine is adopted, and the cutter adopts a machine-managed spray cooling device.

● The main parts of the machine tool adopt steel structure, all of which have undergone vibration aging and stress relief treatment. The worktable is grew to become 180°, -90°~0°~+90°, the profile may be processed on 3 aspects at one time. When processing deep thru holes (formed holes), deep hollow processing may be found out via way of means of turning the worktable to enhance performance and exact quality. .

● Equipped with professional CAD-CAM programming software for industrial numerical control system, it can be connected to domestic and foreign door and window curtain wall software and ERP, CAD graphics import, powerful functions, simple operation and high efficiency.The main shaft adopts an Italian air-cooled electric main shaft with a power of 9KW and a rotation speed of 24000 revolutions/min. It has high precision, good safety and high reliability.

Standard Features & Equipment:

• X-axis working lengths 118 Inches (3m) Option
• Y-axis Travel 11.81 Inches (300mm)
• Spindle Speed 24,000 RPM
• Spindle Motor 9KW
• Tool Holder ER32

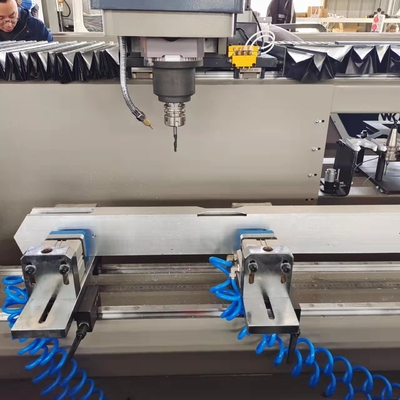

• Equipped with Air Clamps
• Automatic Waylube Lubrication System
• Mist Lubrication System
• Mitsubishi Servo Drives/Motors
• X, Y, and Z-axes are servo controlled​

Optional Equipment

• Automatic Moving Fixture

• Optional length on X-axis can working with 2500mm 3200mm 5500mm 6000mm etc

• Barcode reader

2. Specification and Parameter

3. Sample Holes After Working:

Q1: How to work with aluminum machining center?

Q2: How to set up XYZ start position?

Q3: How to adjust aluminum machining center after got machine?

Q4: How does the aluminum machining center work?

Answers: Pls contact me for details, Will sent you detailed videos for aluminum cnc machining center.
