Product Details:
|
| Power: | 380V/50Hz （Can Make According Your Voltage） | Total Power: | 14.6KW |
|---|---|---|---|
| Cutting Angle: | 90°、 45° | Cutting Length: | 300-6500mm |
| Cnc Machining Or Not: | CNC Machining |

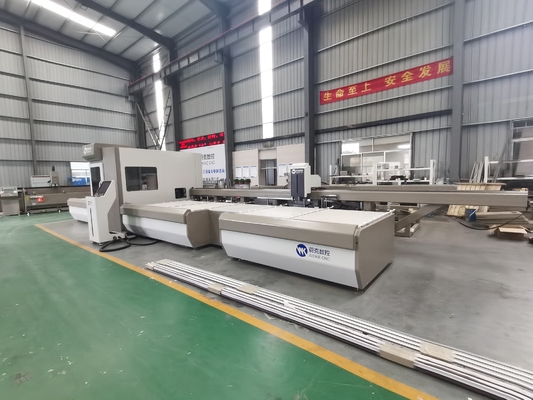

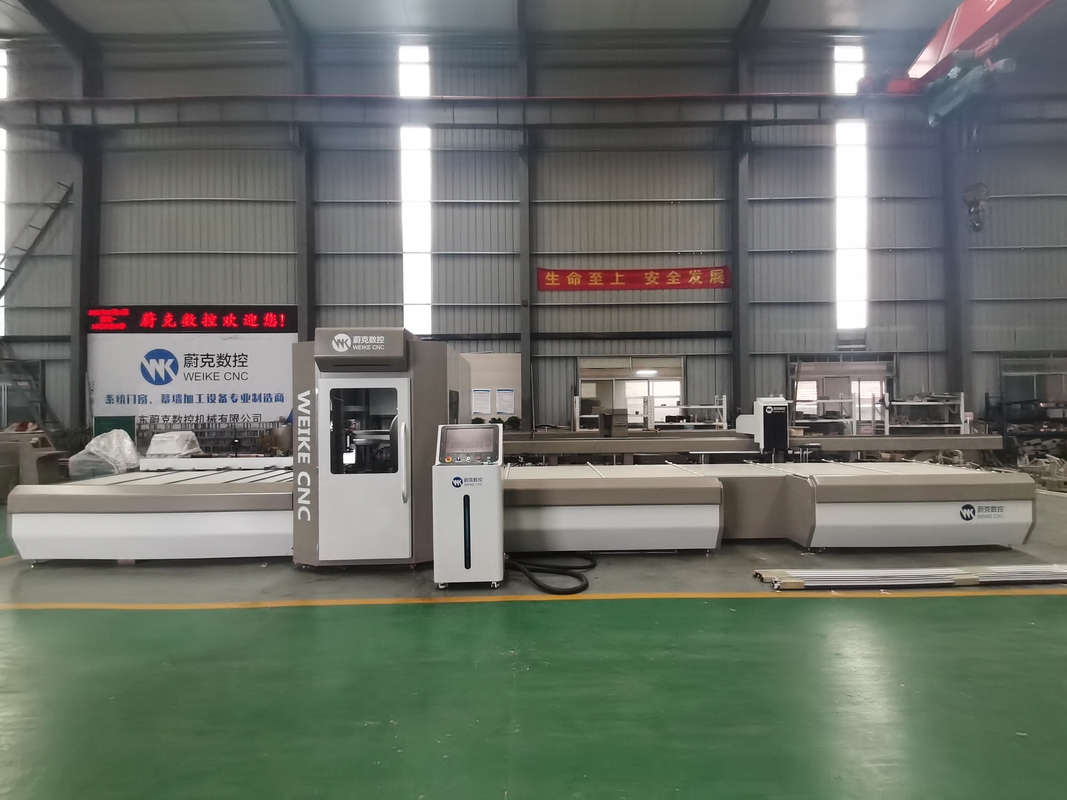

Aluminum CNC cutting centre is suitable for high-efficiency sawing and processing of aluminum door and window profiles, and can be sawing at 45°, 90° and 45° and 90° combined angles at the same time. The cutting optimization rate is 99.8%, and the innovation of the sawing unit structure saves processing time and reduces processing errors and wear.
1. Feature

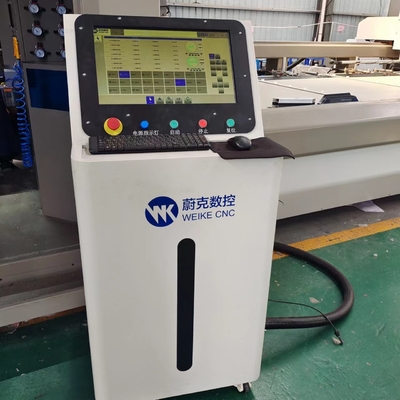

● Equipped with German industrial CNC control system, remote assistance, and support for docking with domestic and foreign door, window and curtain wall system software.
● The feeding and discharging system is fully servo controlled, fast and accurate, equipped with a standard clamping system, and the intelligent manipulator automatically rotates 0-360° to clamp the profile at any angle, which can meet the clamping and feeding of various profiles.
● The entire cutting process requires only one person to operate, which is efficient, simple and fast.
● The whole machine's gas-electric protection device and mechanical protection device ensure safe production.
● Equipped with a bar code printer to print material identification in real time to realize process information identification, which is convenient for material management and connection with enterprise ERP management software.
| Product Parameter | |
| Total power | 14.6kw |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.6~0.8MPa |
| Motor rotary speed | 3000r/min |
| Saw blade specification | φ550 |
| Cutting angle | 90°, 45° |
| Cutting length | 300-6500mm |
| Maximum cutting section | 175 * 150mm |
| Overall dimension | 13500*3000*2600mm |
| Weight about | 4900kg |
2.Other products
3.Mechanical details
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
1. What are the functions?How to adjust the angle?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
