Product Details:
|
| Function: | PVC Window And Door Machine | PVC Welding: | 3 Heads |
|---|---|---|---|
| Welding Height: | 120mm | Weight: | 1100KG |
| Working Pressure: | 0.5~0.8MPa | Welding Area: | 400~3500mm |
| Highlight: | 0.8MPa PVC Window Door Machine,1100KG Upvc Seamless Welding Machine,UPVC Three Head Welding Machine |
||

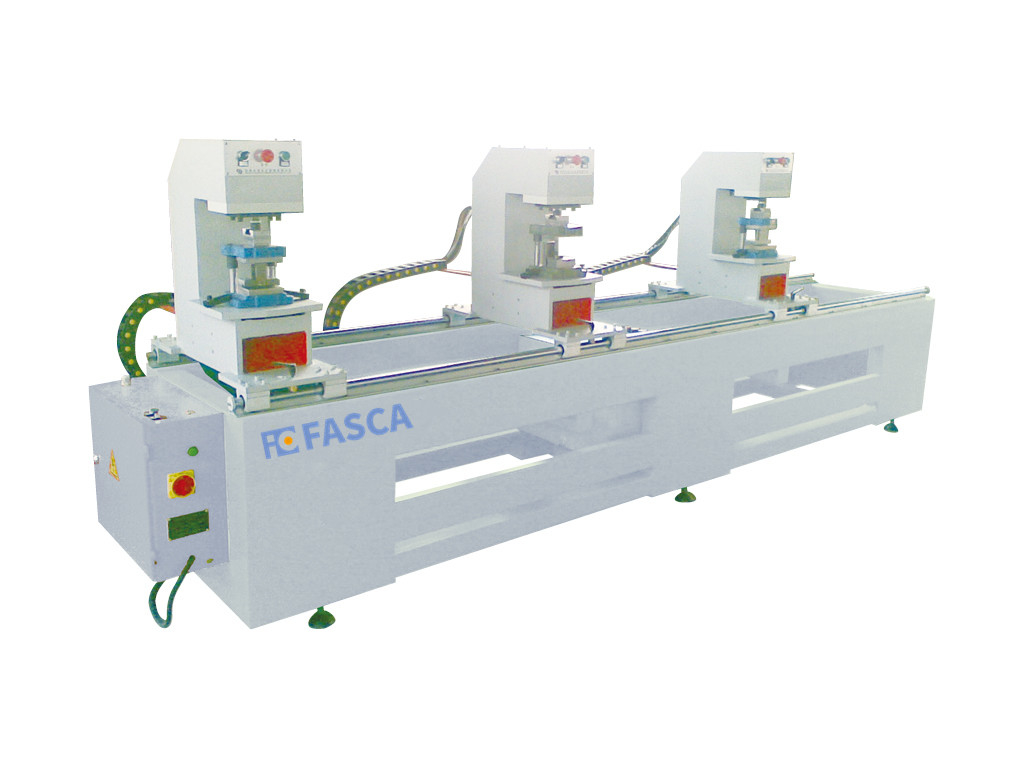

3 Heads Seamless uPVC Welding Machine for uPVC Window And Doors
Plastic doors and windows four seamless welding machine welding is completed will flash disposable cleaning is completed, and can strictly control the welding gap size, so the color profiles after welding, surface welding is very beautiful, high-grade, welding strength is higher than the original profile angle strength
| Voltage: | 380V/220V 50Hz |
| Power: | 4.5kW |
| Pressure: | 0.5-0.8MPa |
| Air Consumption: | 200 L/ min |
| Welding Height: | 20~100mm |
| Max Welding Width: | 120mm |
| Welding Range: | 400 ~3500mm |
| Overall Dimension: | 5500×1000×1700mm |
| Weight: | 1400kg |
| Cylinder | BESTEN |
| PLC | Shandong MICROCON / OMRON option |
| Motor | Shanghai Wannuo |
| Solenoid Valve | Zhejiang JELPC |
| Reducer Valve | Zhejiang STNC |
| Control Board | Aluminum Board |
| Electric Parts | Zhejiang CHNT |
Machine Photos:
