Product Details:
|
| Function: | Drilling Lock Holes | Suitable Material: | PVC Or UPVC |
|---|---|---|---|
| Motor: | 2.25KW | Weight: | 220KG |
| Milling Bits Diameter: | 5 And 8mm Dia | Copy Routing Area: | 290*100mm |
| Highlight: | Aluminum uPVC Copy Routing Machine,Copy Routing Machine 220KG,220KG Upvc Window Making Machine |
||

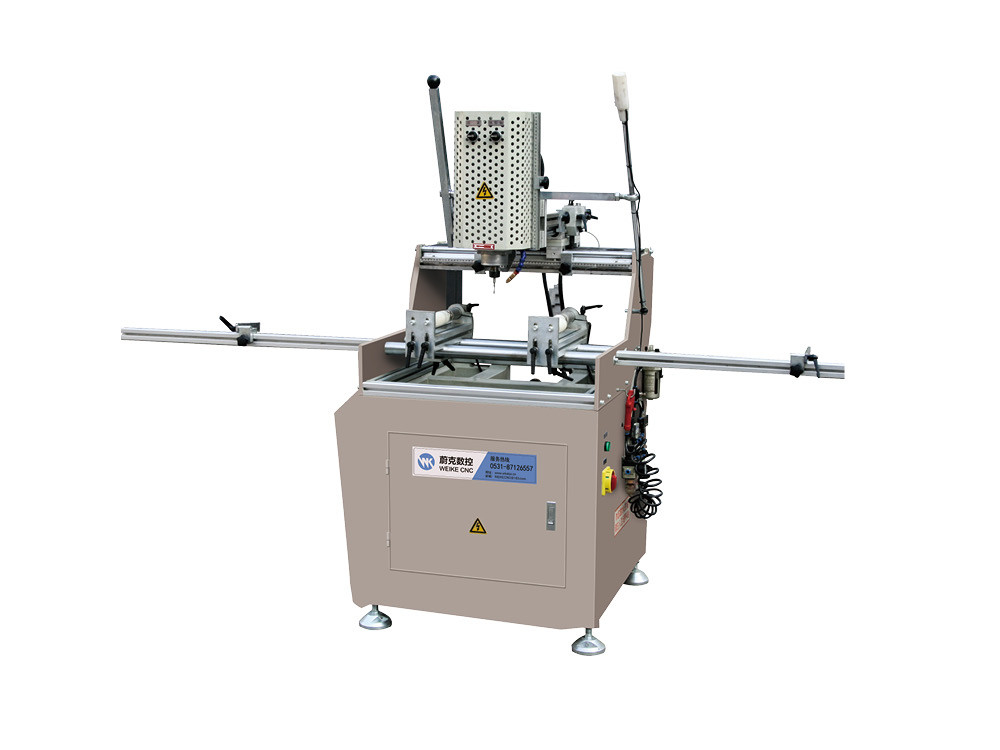

PVC Window And Door Production Machine Lock Holes Copy Routing Drilling Machine
Used for copy routing and processing various kinds of holes, grooves and lock holes, water slots on alluminium material and PVC material, special for window and doors production area.
Feature
1. 1 Used for copy-routing processing various kinds of holes, grooves and water-slots on aluminum windows and doors
1.2 By copying template and auxiliary positioning two copying method
1.3 Using a foot switch control the pressing cylinder, safe and reliable
1.4 It has features of compact structure and small volume
Parameter.
1 Input power :2.25kw
2 Power supply: 380V/50Hz
3 Working pressure :0.6-0.8Mpa
4 Diameter of the three -hole drilling head: φ12
5 Centers distance of the three-hole drilling head :21.5x21.5mm
6 Milling cutter diameter:φ5.φ8
7 Copy-routing range:290x100mm
8 Overall dimension:1000x1130x1600
10 Weight:250kg

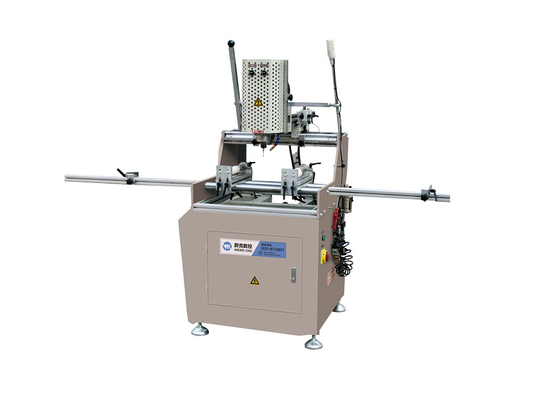

Photos
