Product Details:
|
| Function: | Drilling Milling Holes | Suitable Material: | PVC And Aluminum Material |
|---|---|---|---|
| Motor: | 1.5KW | Weight: | 180kg |
| Milling Bits Diameter: | 5 And 8mm Dia | Copy Routing Area: | 235*100mm |
| Voltage: | 380V | Applicable Material: | Aluminum UPVC |
| Highlight: | 1.5KW PVC Window Door Machine,1.5KW Aluminum Window Copy Router,380V Aluminum Window Copy Router |
||

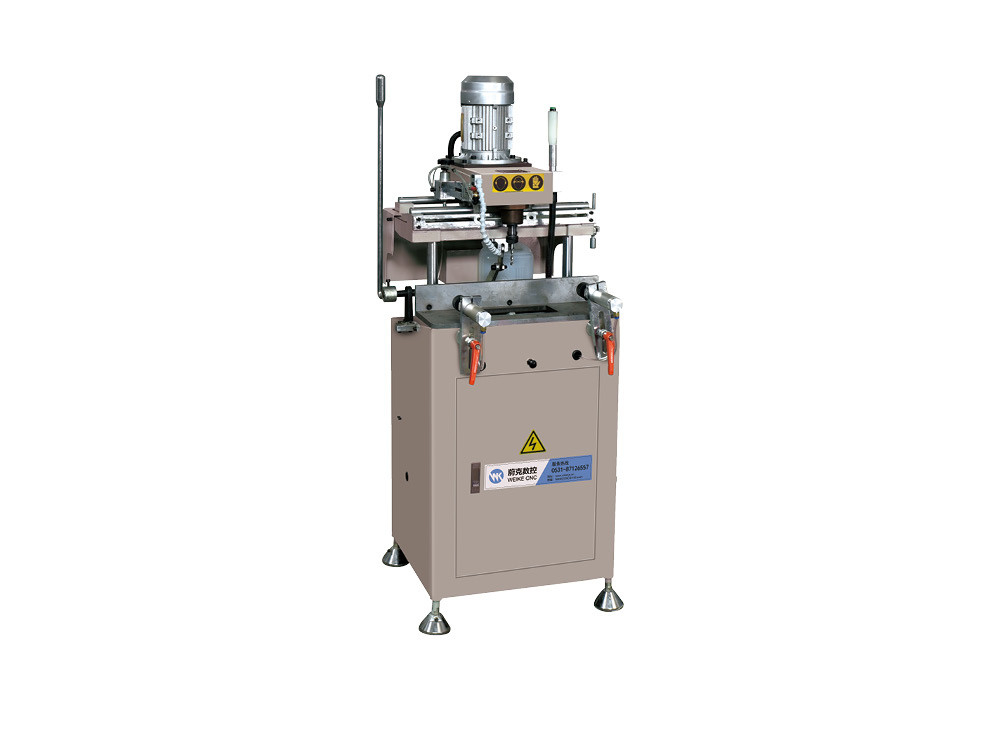

Copy Routing Drilling Machine for PVC and Aluminum Profile
Used for copy routing and processing various kinds of holes, grooves and lock holes, water slots on alluminium material and PVC material, special for window and doors production area.
Feature
1. 1 Used for copy-routing processing various kinds of holes, grooves and water-slots on aluminum windows and doors
1.2 By copying template and auxiliary positioning two copying method
1.3 Using a foot switch control the pressing cylinder, safe and reliable
1.4 It has features of compact structure and small volume
Parameter.
1 Input power :2.25kw
2 Power supply: 380V/50Hz
3 Working pressure :0.6-0.8Mpa
4 Diameter of the three -hole drilling head: φ12
5 Centers distance of the three-hole drilling head :21.5x21.5mm
6 Milling cutter diameter:φ5.φ8
7 Copy-routing range:235x100mm
8 Overall dimension:870*700*1500mm
10 Weight:180kg
Photos
