Product Details:
|
| Function: | PVC Window And Door Machine | PVC Welding: | 2 Heads/ 3 Heads/ 4 Heads Option |
|---|---|---|---|
| Working Pressure: | 0.5~0.8MPa | Welding Area: | 400~3500mm |
| Highlight: | 3500mm 4 Head Welding Machine,4 Head Welding Machine 2.5kw,3500mm PVC Welding Machine |
||
PVC Windows and Doors Machine For PVC Welding Machine
Two heads can work independently and can also be linked, flexible combination, high work efficiency· Right head could be 30°～180° arbitrary angle welding.
2.1 Input Power :2.5kw
2.2 Power supply : 220V/50Hz or 380V/50Hz
2.3 Working pressure:0.5-0.8Mpa
2.4 Air consumption:100L/min
2.5 Welding height:20-120mm
2.6 Welding range:400-3500mm
2.7 Overall dimension:4400x950x1700mm
2.8 Weight: 740kg
| Cylinder | BESTEN |
| PLC | Shandong MICROCON / OMRON option |
| Motor | Shanghai Wannuo |
| Solenoid Valve | Zhejiang JELPC |
| Reducer Valve | Zhejiang STNC |
| Control Board | Aluminum Board |
| Electric Parts | Zhejiang CHNT |

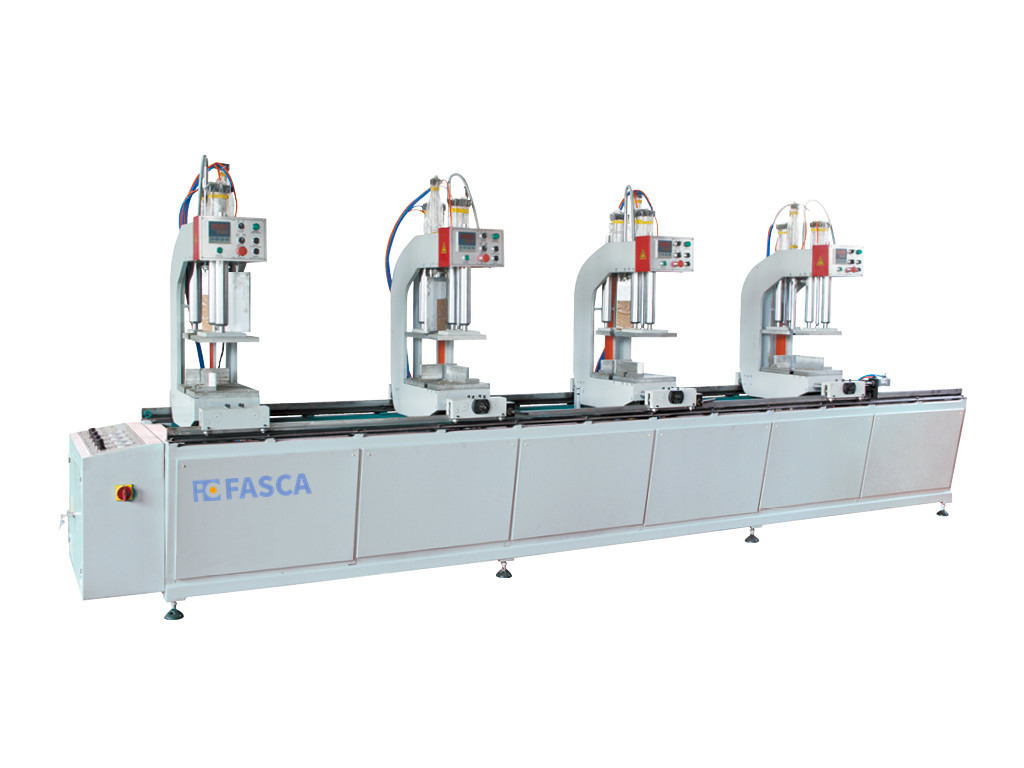

Machine Photos:
Have 2 Heads 3 Heads 4 Heads Option. Also have many different type for choose
