Product Details:
|
| Function: | PVC V Cutting | Suitable Material: | PVC Or UPVC |
|---|---|---|---|
| Motor: | 2.2KW | Cutting Depth: | 20-60mm |
| Highlight: | 2.2KW V Cutting Saw For PVC,PVC Window Door Machine 2.2KW,0.6MPa V Cutting Saw For PVC |
||

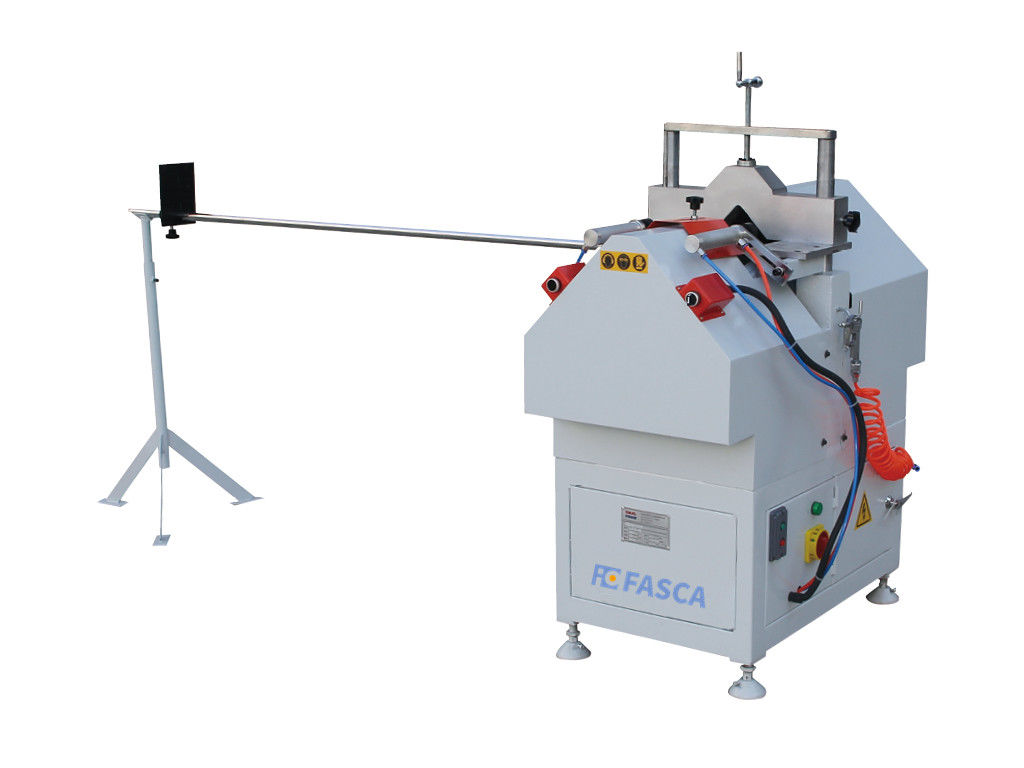

V Cutting Saw For PVC Profile
For 90 degree V shaped groove cutting of PVC profile
Feature
1.1 For 90 °V-shaped groove cutting .
1.2 Pneumatic driving ,easy operation .
1.3 Smoothly feeding and high cutting precision
Parameter
2.1 Input power :2x0.75kw
2.2 Power supply :380V50/Hz
2.3 Working pressure : 0.4-0.6MPa
2.4 Motor rotary speed :2800r/min
2.5 Air consumption:80L/min
2.6 Cutting width:120mm
2.7 Cutting length:300-1600mm
2.8 Depth cutting :20-60mm
Specification
| Pressure | 0.4~0.6MPa |
| Air Consumption | 80L/min |
| Voltage | 380 V 50 Hz |
| Power | 2.2 (1.1×2) kW |
| Motor Speed | 2800 r/min |
| Cutting Depth | 0 ~ 65mm |
| Cutting Width | 0 ~ 120mm |
| Position Length | 1600mm |
| Overall Dimension | 2260×1380×1350mm |
| Weight | 240kg |
Main components brand
| Power Supply | Zhejiang GREE |
| Milling Blade | Jiangsu WEIKE |
| Motor | Zhejiang Fangda |
| Solenoid Valve | Zhejiang JELPC |
| Air Pipe | Japan Sentian |
| Contactor | Zhengjiang CHNT |
| Cylinder | BESTEN |
Detailed Photos:
