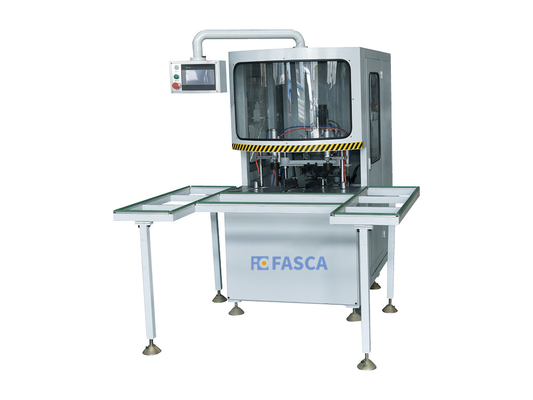

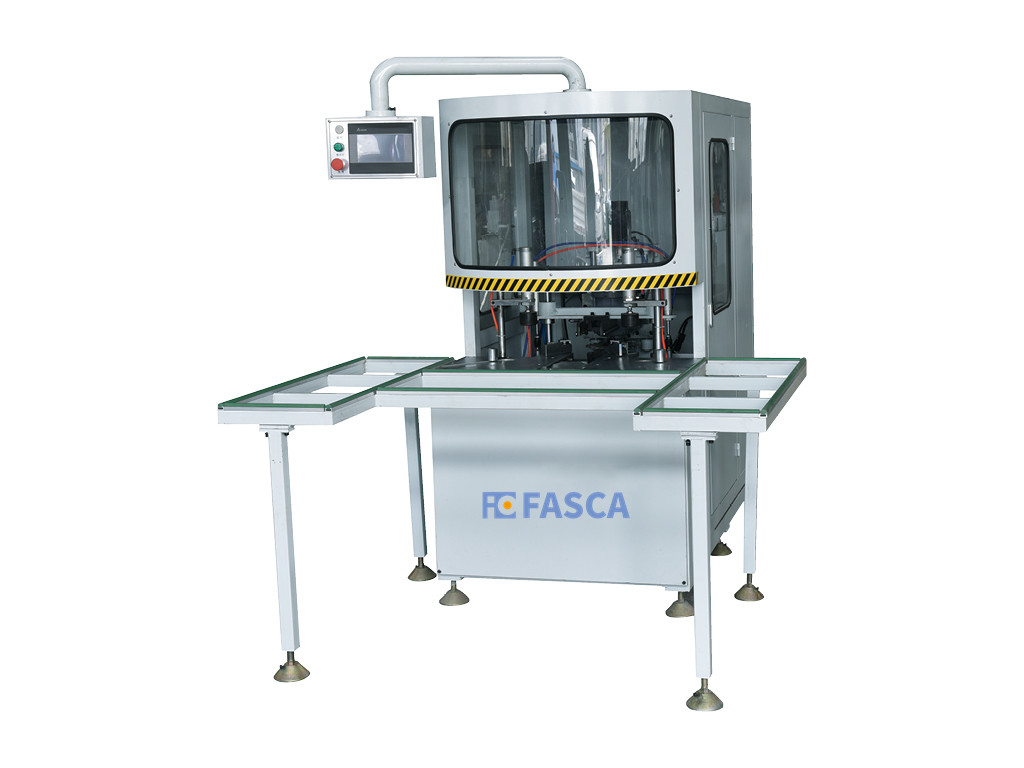

Cleaning PVC Window Door Machine CNC Corner Cleaning Machine

                           PVC Window And Door Profile for CNC Corner Cleaning Machine

For Cleaning PVC Profile welding seam, cleaning the up/bottom surface and the external cornners. This machine is automatic for cleaning the PVC profile corners, suitable for making PVC windows and doors.

Feature

1.1 For cleaning PVC profile weeding seam .

1.2 Doable -axis control system

1.3 Cleaning the up/button surface and the external corner

1.4 High processing precision due to size error compensation function .

1.5 Can store many program for various profile processing .

Parameter

2.1 Input power :1.5kw

2.2 Power supply: 380V/50Hz

2.3 Working pressure :0.4-0.7Mpa

2.4 Motor rotary speed :2800r/min

2.5 Air consumption: 80L/min

2.6 Cutting width :20-100mm

2.7 Cutting height:20-150mm

2.8 Drawing groove width:3mm

2.9 Drawing groove depth: 0.3mm

2.9 Overall dimension:1600x880x1650mm

2.10 Weight:600kg

Photos
