Product Details:
|
| Power Supply: | 380V/50HZ (Customized) | Power: | 12KW |
|---|---|---|---|
| X Axis Journey: | 3000mm | Y Axis Journey: | 400mm |
| Z Axis Journey: | 300mm | X Axis Speed: | 60M/min |
| Y/Z Axis Speed: | 40M/min | Overall Dimension: | 4000*2000*2600mm |

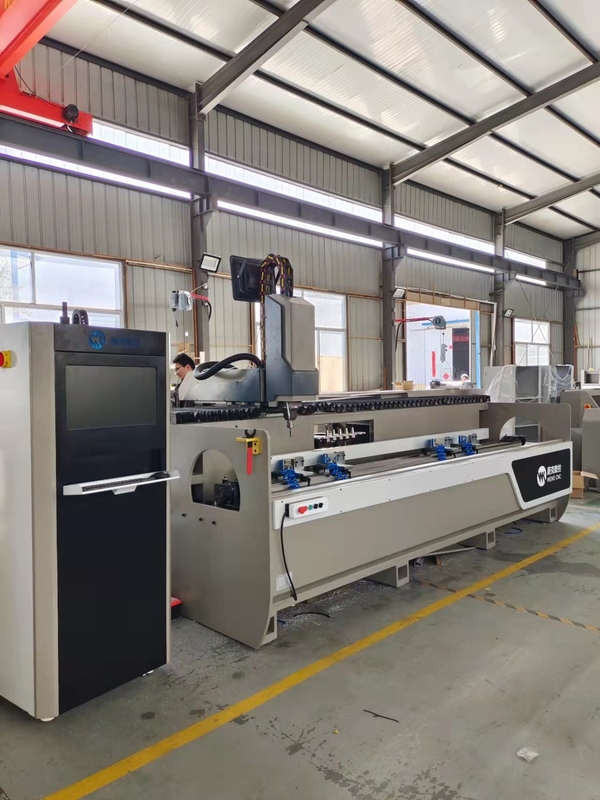

| Tool Magazine: | 6/8 Automatic Tool Changer | Product Name: | CNC Machining Center For Drilling Milling Holes |
| Highlight: | 2.6m Aluminium Doors And Windows Manufacturing Machines,Aluminium Doors And Windows Manufacturing Machines 3Ph,3Ph Aluminium CNC Milling Center |
||
Equipment Features
Used for drilling milling round holes, slots, key-holes etc on aluminum profile, suitable for window-door making and curtain wall making area. It is also suitable for processing milling, chamfering, engraving plane surface and other procedure.
| Product Parameter | |

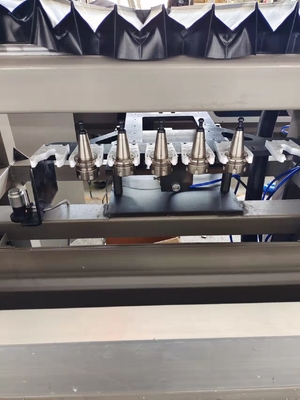

| Tools magazine | 6 Milling drilling bits |

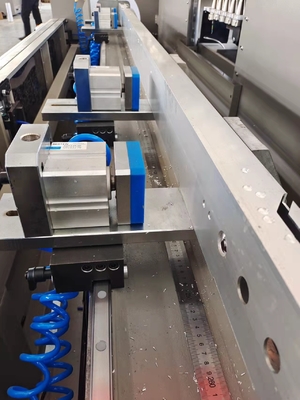

| Table structure | Heavy duty welded machine body with clamping tooling on it special for clamping aluminum profile |
| Working Size | X/Y/Z> 3200*400*300mm |
| Maximum speed | 24000/min |
| X axis speed | 60M/min |
| Y axis speed | 40M/min |
| Z axis speed | 40M/min |

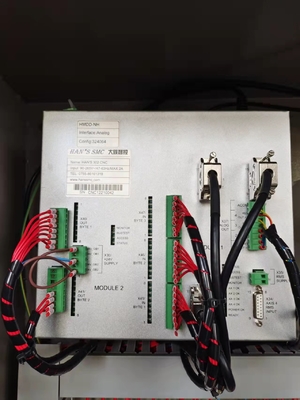

| Control System | Germany HANS PA industrial CNC system is equipped with professional CAD-CAM programming software |
| Lubrication system | Auto lubrication pump |
| Tool setting | Automatic tool setting |
| Electric Components | French Schneider AC contactor, Taiwan Airtac electromagnetic valve |
| Working voltage | 380V 3Ph 50Hz |
| Size | 4000*2000*2600mm |
|
Weight
|
2100kg (more or less) |
1. You can choose different working area machine from 500mm to 7000mm length

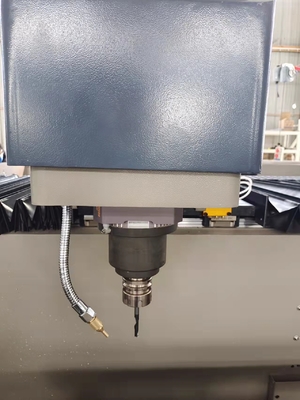

2.Mechanical details and after working samples
Drilling and Milling Round holes, Square holes, Slots, Key-holes, different shape holes, Counterbore, double layer holes, Multi-layer holes. Cutting different angle profiles, Can chamfering, engraving plane surface and different shape aluminum profile.
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
If you are interested in our machine,please send inquiry for me.
