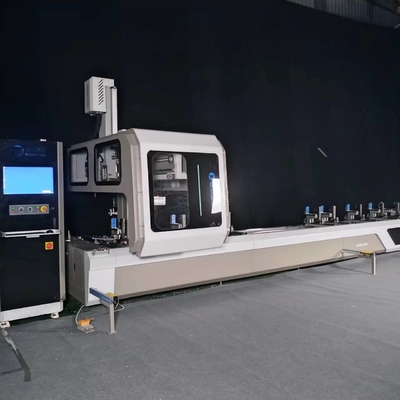

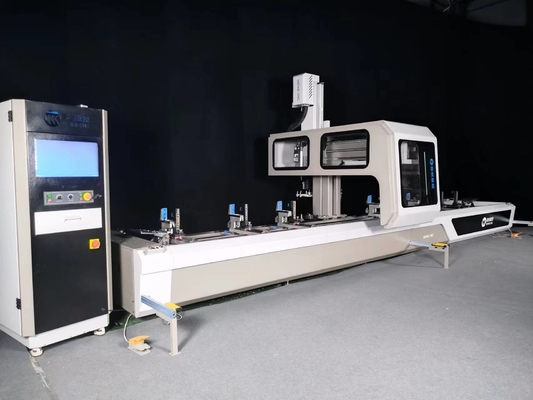

HANS PA Aluminum Machining Center 300mm 4 Axis Cnc Milling Machine

Equipment Features

1. This machine can achieve a material clamping, According to processing needs, it can complete multiprocess processing such as milling lock hole grooves, flow grooves, air pressure balance holes, installation holes, etc.

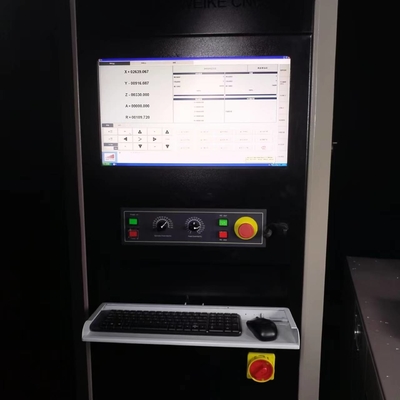

2. This machine adopts Shenzhen Big family (PA) CNC machine tool system, can complete the continuous automatic milling of different sizes of profiles, powerful function. CAD drawings can be imported into the system is convenient and easy to connect with Klaes, Chuanggao, Dutt, New Gerschuge, Changfeng and other domestic and foreign doors and Windows. Curtain wall system software.

3. Suitable for all kinds of aluminum, copper, PVC, industrial profiles, building curtain wall, sun room and other complex parts processing.

4. Single arm frame structure of moving beam and column is adopted to make the operation more stable and improve the machining rigidity of the machine tool.

5. Adopt highquality imported servo motor, ball screw, linear guide pair and bearing to ensure that the equipment has higher processing accuracy, high stability and reliability. The feed movement ensures the stability of machining accuracy by pre-stretching.

6. This machine adopts imported fouraxis milling head, which can complete the processing of the other three surfaces except the bottom surface. Vertical disc type tool magazine (12 positions).

7. The central centralized automatic feeding lubrication with quantitative timing ensures the stability of machine accuracy.

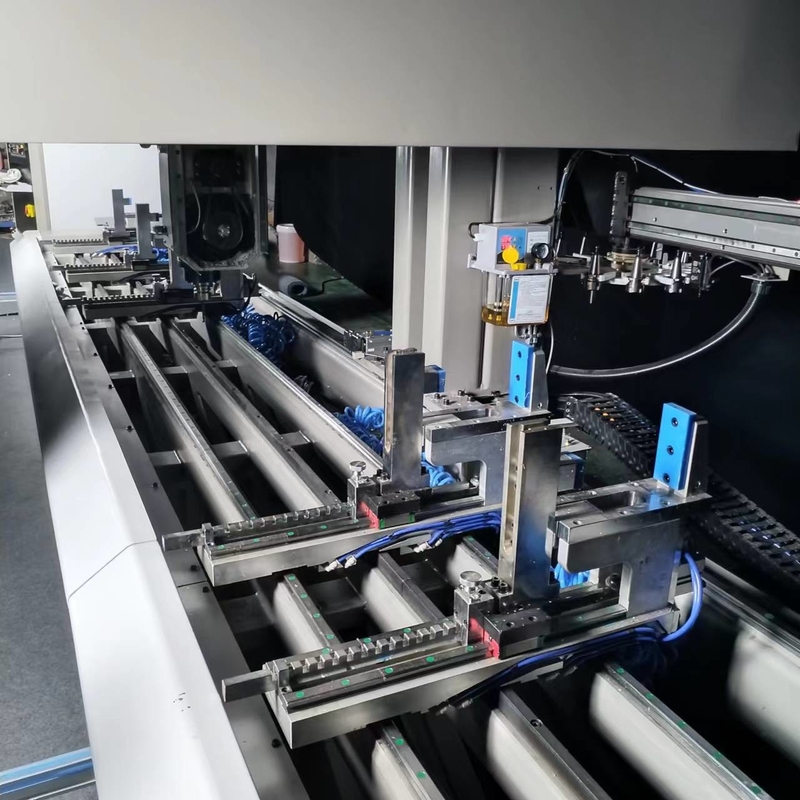

8. Adopt pneumatic clamping table to improve loading and unloading speed. Optional T table.

9. The fuselage adopts grating safety protection function to ensure safe operation.

1. You can choose different working area machine from 500mm to 7000mm length

2.Other products

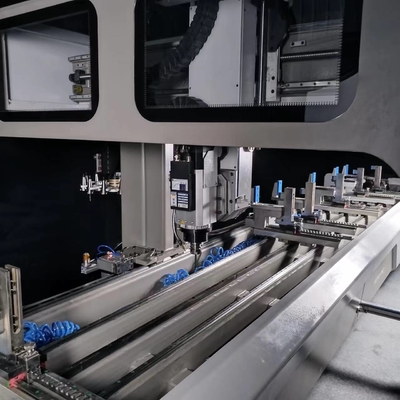

3.Mechanical details and after working samples

Drilling and Milling Round holes, Square holes, Slots, Key-holes, different shape holes, Counterbore, double layer holes, Multi-layer holes. Cutting different angle profiles, Can chamfering, engraving plane surface and diferent shape aluminum profile.

1.Provide free training when come to factory study.

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.

Because of Covid-19, we provide:

1. Before delivery: Machine operate manual, program software user manual and English videos.

2. Before delivery: Face to face video training online between your operator and our engineer.

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Machine Operate Manual Will Be Provided

Machine Operate Video Will Be Provided

The company strives to forge ahead and pursue excellence in the development concept, constantly strengthening the core competitiveness of the industry, striving to achieve leapfrog development, and is committed to creating a world-class professional supplier serving the building energy-saving doors and Windows industry

If you are interested in our machine,please send inquiry for me.
