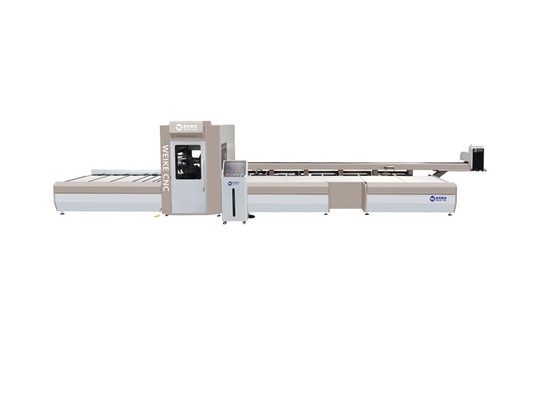

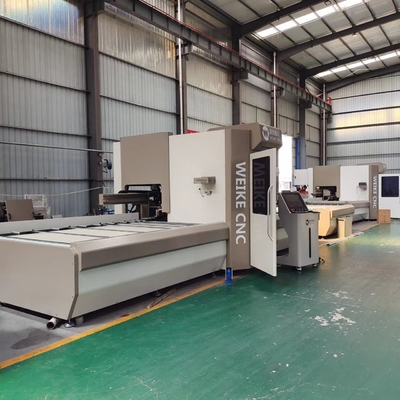

Aluminum Cutting Saw Center For Window Doors Fabrication CNC Automatic Window Machine Center

Aluminum CNC cutting centre s suitable for high-efficiency sawing processing of aluminum door and window profiles, and can simultaneously perform 45°, 90°, and 45° and 90° combined angle sawing processing of profiles. The machine is designed for cutting PVC profiles with maximum cutting speed and highest quality. The machine performs the operation of profile loading from the bars stock, cutting and unloading of piece, in complete autonomy and without the assistance of the operator.

◎Power supply: 380V/50Hz
◎Total power of the whole machine: 14.6KW
◎ Spindle motor speed: 3000r/min
◎Working air pressure: 0.5～0.8MPa
◎Air consumption: 200L/min
◎Sawing length range: 300mm~6500mm
◎Saw profile section size (width x height): 175mm x 150mm
◎Sawing accuracy: ±0.1mm
◎Sawing angle: 45°, 90°
◎Saw blade specification: Φ550mm
◎Feeding speed: 0~50M
◎Feeding return speed: 0~50M
◎Saw blade lifting speed: 0~10M
◎Lubrication/cooling system: automatic lubrication/micro-atomization cooling
◎Dimensions: 13500×3000×2100mm
◎Weight: 5000kg

1. Feartures

◎Aluminum cutting centre is suitable for high-efficiency sawing of aluminum door and window profiles, and can be sawed at 45°, 90°, and 45° and 90° combined angles at the same time. Using a large saw blade with a diameter of 550mm, the servo motor controls the saw blade, which is efficient and stable, and the cutting is stable.

◎Industrial CNC control system, can assist remotely

◎The feeding and discharging system is fully servo controlled, fast and accurate, equipped with a standard clamping system, and the intelligent manipulator automatically rotates 0-360° to clamp profiles at any angle, which can meet the clamping and feeding of various profiles.

◎Adopt high-quality feed servo motors, ball screws, linear guide pairs and bearings to ensure that the equipment has high machining accuracy, high stability and reliability.

◎The whole machine is equipped with electrical and electrical protection devices and mechanical protection devices to ensure safe production.

◎ Equipped with a barcode printer, which can print material identification in real time, realize the identification of process information, and facilitate material management and connection with enterprise ERP management software.

◎Equipped with a waste output device, which prevents site pollution caused by the accumulation of waste, and is convenient for cleaning.

2.Details

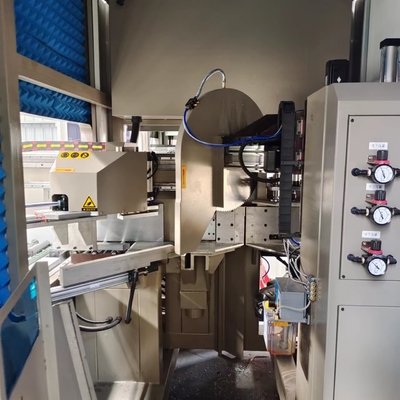

1. Aluminum cutting centre is 13.5 meters long, 3 meters wide, 2.6 meters high, and weighs 5 tons. The whole machine is divided into feeding section, manipulator feeding, sawing section and unloading section.

2. Adopt German industrial PA system. Support remote assistance

It can be connected with door and window software (German KLAES, Chuango, Duter, Xingel, Schüco and other domestic and foreign door and window and curtain wall software) to support connected intelligent production.

3. Cutting unit structure innovation

Saw blade eight cross design, continuous feeding without pulling Save time, improve efficiency, reduce error and wear

Feeding speed: 0~80M
Discharge speed: 10-12S/piece
Saw blade lifting speed: 0~ 60M

4. Equipped with barcode printer
Real-time printing of material identification

5.Electric Components:

French Schneider

6. After working samples
