5 Axes vertical CNC machining center for industrial aluminum profiles, doors, windows, curtain walls, etc

5 axis gantry type vertical spindle CNC machining centre, ideal for curtain walls and window walls profiles, but with great flexibility for any other in industrial sector.For high speed machining of Aluminium– Brass – Copper and PVC materials.

5 axis machining center is a complete machining solution that is able to cut the pieces to length, using the clamp system independently and move the cut pieces to determined locations within the machine to allow end machining as well as the normal face and side workings. It can be used in numerous applications including, windows-doors and curtain walling, automotive to aerospace, engineering, internal partitions, sign manufacturing, air conditioning and refrigeration. We have installed these machines for a very diverse range of applications including; machining slots, pockets, holes, custom shapes, end slotting , tapping and rigid tapping, drilling and flow drilling.

1. Feartures

1. CNC automation system providing motion control at 5-axis;

2. Easy to programm with user-friendly;

3. 2 x separate magazine unit for 12 standard tools and 1 for saw blade with 300 mm dia;

4. Solid steel construction of the body and dynamic performance gantry;

5. Special sound insulation cabinet around the machining center;

6. CNC controlled spray tool lubrication system;

7. Hand held controller allows you to prove the job before running at speed;

8. Program import via USB flash memory stick;

9. Standard ISO ‘G’ code programming language.

Technical Parameters

1. Control System: Italy OSAI OPEN smart 5 Axis Controller with RTCP function

2. Spindle: Italy HITECO KPX150 5 Axis spindle

3. XYZ axis traveling speed : L*W*H > 6500*400*300mm

4. XYZ axis traveling speed :XYZ:70/55/30m/min

5. Lubrication system :Auto lubrication pump

6. Tool collet :HSK E63

7. Max blade diameter :300mm

8. Tools magazine : 12 Milling drilling bits

2.Details

1. Controller:

Italy OSAI Open Smart 5 Axis Controller+ LCD screen  With RTCP Function

2. Spindle:

Italy HITECO KPX120 12KW Electric Spindle   HSK-63F tool shank

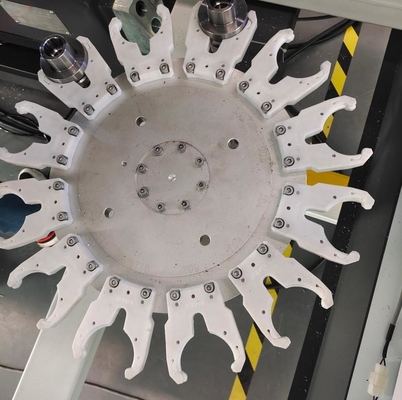

3. Tool magazine

4. 300mm saw blade

5. Servo motor and drive


3. Other products



4. Workshop showing

5. Our services

1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.

2. Provide free training when come to factory study.

Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.

2. Before delivery: Face to face video training online between your operator and our engineer.

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Machine Operate Manual Will Be Provided
