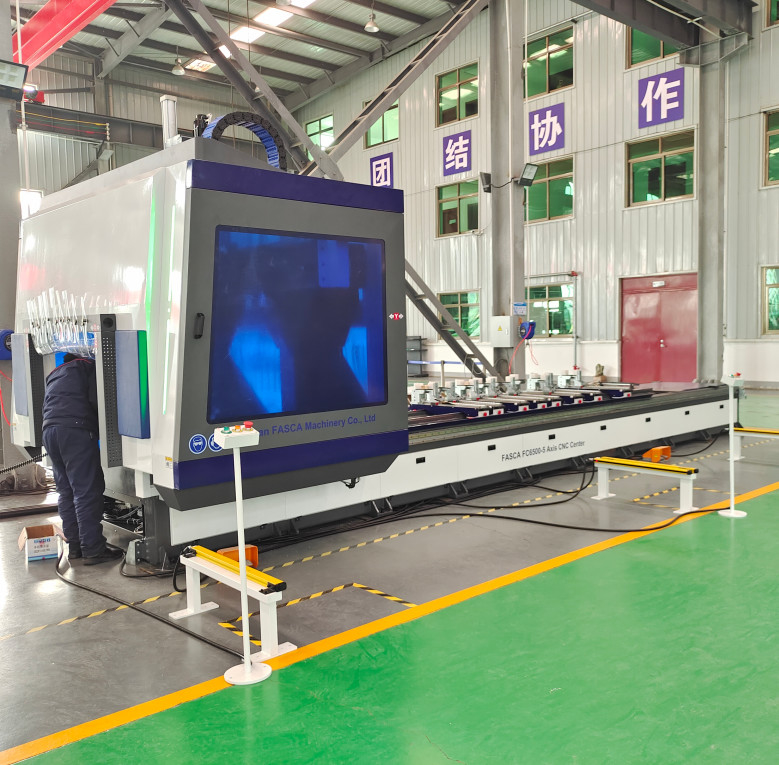

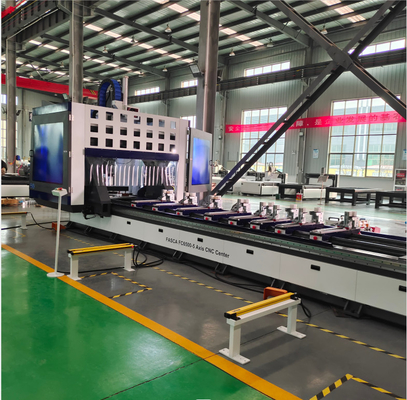

High-Precision 5 Axis CNC Working Centre For Industrial Aluminum Profile

CNC Aluminium machining centre with 5 axes has been designed to carry out drilling and milling operations on aluminium or UPVC profiles. The 24,000 rpm, 12kw electrospindle allows removal of a significant amount of chips and high machining speeds. The quick and simple configuration of the work tables make it economical to use even for the production of small batches, as “pendular machining” or “multi-piece and pendular machining” functions can be activated, with the ability to select a large number of vice/stop configurations.

1. Feartures

1. Used for for mould making,ship,rail traffic,car buffer beam,photovoltaic,aluminum window door and curtain wall industry aluminum structure parts processing.It is also the ideal machine to suitable for high precision processing,complicated parts and mould making industry,aerospace project.

2. Adopt Itlay OSAI (5 axis) CNC control system(with RTCP function), use imported servo motor and servo driver for moving parts, so can make sure fast positioning speed and stable working.

3. The CNC system have file storage unit, can store more than ten thousands different program files. The operators is convenience to use them during production.

4. Adopt advanced CNC control system, the machine can meet various processing requirements,such as drilling milling, rigid tapping and sawing.

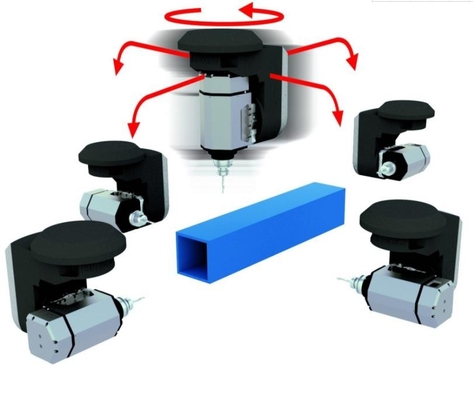

5.Five Axis spindle adopts Italy HITECO12KW automatic tool change and tool aligning function.Realizing multi-faceted and multi-angle process on kinds of aluminium profile. With cutting function can realize precisely cutting at multifaceted and multi-angle.

6. 12 tools disc magazine, meeting the requirement of quick tool changing in different hole positions of profile processing.

7. With spray cooling function, improve profile surface processing quality and extend tool life.

8. It can achieve dual-zone working model,means one zone is working, at the same time another zone is load/upload parts. Machine can achieve alternating working.

9. Machine body frame was treated by overall heavy-duty welding, And it is satisfied with the standard of CNC Milling design, overall machine was processed by the CNC Machining center after heat treatment. The machine gantry structure adopts overall welding. It have the advantages of high precision, stable structure and long user lift etc.

2.Details

1. Controller:

Italy OSAI Open Smart 5 Axis Controller+ LCD screen  With RTCP Function

2. Spindle:

Italy HITECO KPX120 12KW Electric Spindle   HSK-63F tool shank

3. Tool magazine

4. 300mm saw blade

5. Servo motor and drive


3. Other products



4. Workshop showing

5. Our services

1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.

2. Provide free training when come to factory study.

Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.

2. Before delivery: Face to face video training online between your operator and our engineer.

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Machine Operate Manual Will Be Provided

Machine Operate Video Will Be Provided

6.Packaging Details

1.  Inside is plastic film.

2.  Under the equipment is the iron tray fixed, or choose wooden box packing

3.  Can also be based on customer needs for packaging QingDao Port


7. Any Questions?

1.Are there training instructions?
2. How long is the warranty?
3. What are the functions?
4. Can be customized according to my needs?
5. What brand are the accessories?

6. What is 5 axis aluminium machining center?

If you also have these questions, you can contact me for more details.
