Product Details:
|
| Dimension(L*W*H): | 9800*2500*2800mm | Spindle Power: | 9.5kw |
|---|---|---|---|
| Working Size: | X/Y/Z> 6500*400*300mm | Material: | Aluminium,UPVC ,PVC |

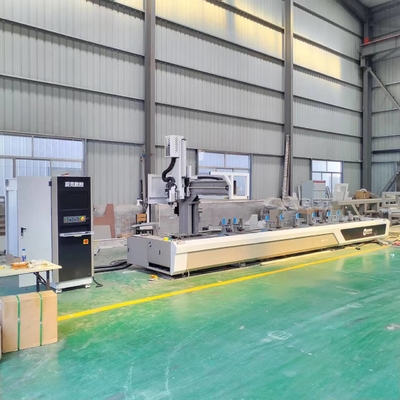

The 4 Axes CNC Machining Center,
Spindle turn from -90 to +90 degree, 180 degree any angle working;
Have remote control function, can connect online and training very convenience;
12 Sets Tool Shank Automatic Tool Changer;
Double Zone Working Area;
Match CAM programming software special for Aluminum profiles.
1. Equipment Features
1. Used for performing milling, drilling, machining, end milling processing on aluminum and PVC profiles.
2. Non-standard specific operations on different profiles
3. CNC based control system
4. Precise process at any angle between -90° and +90°
5. Automatic tool replacement
6. Ability to perform processing in two separate zones
7. Automatic magazine for 12 tools
8. Automatic clamping positioning
| Product Parameter | |
| Tools magazine | 12 Milling drilling bits |
| Table structure | Heavy duty welded machine body with clamping tooling on it special for clamping aluminum profile |
| Working Size | X/Y/Z> 6500*400*300mm |
| Maximum speed | 24000/min |
| Processing length | 6500mm |
| Processing width | 400mm |
| Processing height | 300mm |
| Control System | Germany HANS PA industrial CNC system is equipped with professional CAD-CAM programming software |
| Lubrication system | Auto lubrication pump |
| Tool setting | Automatic tool setting |
| Electric Components | French Schneider AC contactor, Taiwan Airtac electromagnetic valve |
| Working voltage | 380V 3Ph 50Hz |
| Size | 9500*2500*2800mm |
| Weight | 4500kg (more or less) |
| Machine function |
End milling, lock holes, water slots, install hole... Auto tool changer Auto tool setting |
2.Mechanical details and after working samples
1.Controller:
Germany HANS PA CNC system
Match CAM programming software special for aluminum profile area

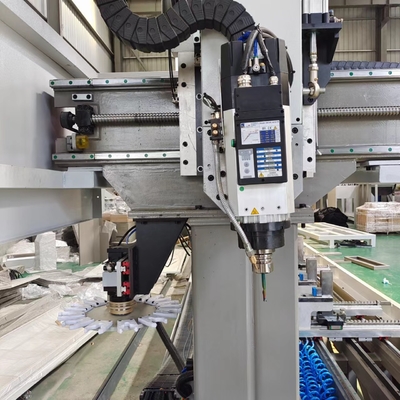

2.Spindle:
9KW Italy Olispeed
3.Tool Magazine
Milling bits-12 Tool Shanks

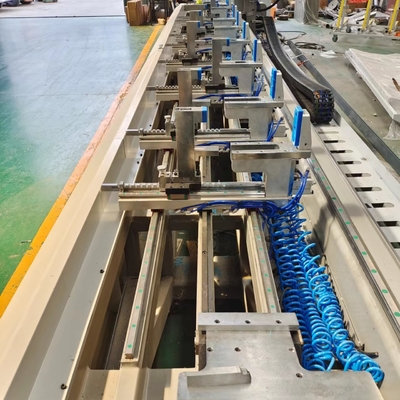

4.Clamps:
Designed clamps approved patent can adjust to suitable different width and height profile.
5.Holes sample after work
3.Other products
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1. Why is it called 4 axes machining centre ? What are the functions?
2. What are the advantages of 4 axes over 3 axes?
3. Are there training instructions?
4. How long is the warranty?
5. Can the 4 axes be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
