6500mm 7000mm 5 Axis CNC Aluminium Profile Machining Center With 12kw Prower Spindle

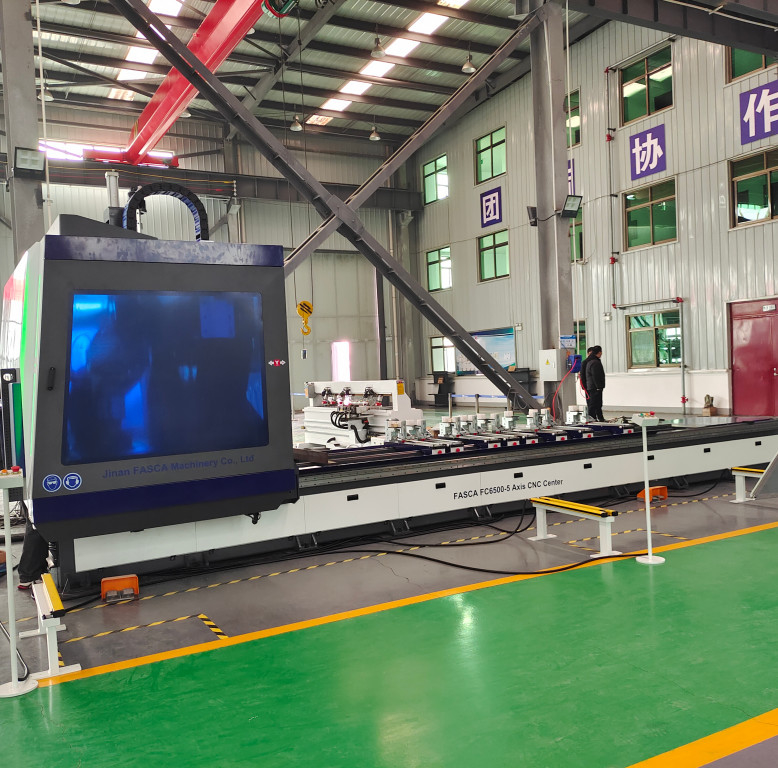

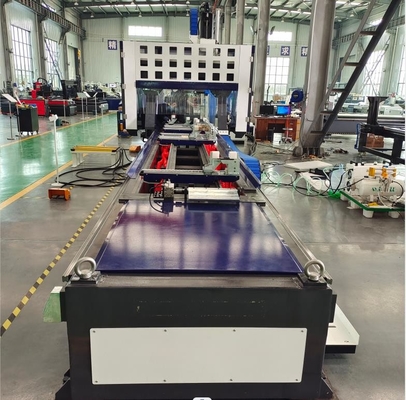

5 axis CNC Profile Machining Center working on X-Y-Z-A-C axis independently.

Thanks to the CNC controller unit it is possible to make any routing, drilling, milling, notching and cutting operations on the profile pieces in any angle and any position.

The machine has a standard size of 6.5 meters and can Customized length according to customer needs. The pneumatic profile holding clamps are moved by the C column itself and positioned according to the placed that are read from the Profile Machining Software to prevent from collision and for the best grip of the profile piece.

The Rotary head can tilt in A axis +/- 180 degrees and in C axis +/- 320 degrees with the spindle attached 12.0 kW 24.000 rpm with HSK-F63 tool holders.

The machine has a tool changer magazine of 12 positions and 1 for the notching and cutting blade. Thanks to the 300 mm notching blade it is possible to end mill or notch or cut any size of profile.
It is also possible to make the routing operations and the cutting operations in different angles on this machine.

1. Feartures

1. Used for for mould making,ship,rail traffic,car buffer beam,photovoltaic,aluminum window door and curtain wall industry aluminum structure parts processing.It is also the ideal machine to suitable for high precision processing,complicated parts and mould making industry,aerospace project.

2. Adopt Itlay OSAI (5 axis) CNC control system(with RTCP function), use imported servo motor and servo driver for moving parts, so can make sure fast positioning speed and stable working.

3. The CNC system have file storage unit, can store more than ten thousands different program files. The operators is convenience to use them during production.

4. Adopt advanced CNC control system, the machine can meet various processing requirements,such as drilling milling, rigid tapping and sawing.

5.Five Axis spindle adopts Italy HITECO12KW automatic tool change and tool aligning function.Realizing multi-faceted and multi-angle process on kinds of aluminium profile. With cutting function can realize precisely cutting at multifaceted and multi-angle.

6. 12 tools disc magazine, meeting the requirement of quick tool changing in different hole positions of profile processing.

7. With spray cooling function, improve profile surface processing quality and extend tool life.

8. It can achieve dual-zone working model,means one zone is working, at the same time another zone is load/upload parts. Machine can achieve alternating working.

9. Machine body frame was treated by overall heavy-duty welding, And it is satisfied with the standard of CNC Milling design, overall machine was processed by the CNC Machining center after heat treatment. The machine gantry structure adopts overall welding. It have the advantages of high precision, stable structure and long user lift etc.

2.Details

1. Controller:

Italy OSAI Open Smart 5 Axis Controller+ LCD screen  With RTCP Function

2. Spindle:

Italy HITECO KPX120 12KW Electric Spindle   HSK-63F tool shank

3. Tool magazine

4. 300mm saw blade

5. Servo motor and drive
