Aluminium CNC Punching Machine For Window Door 3200mm 3000mm 3 Axis CNC Machining Center With 6 Tool Changer

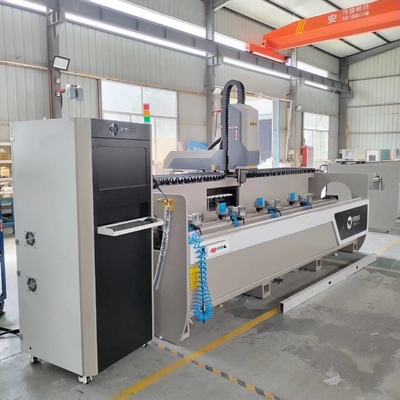

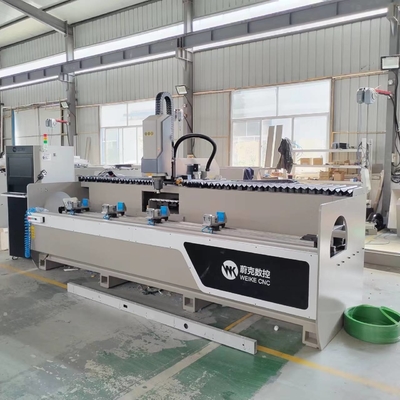

WSZH-CNC-3200 3-axis CNC machining center with capabilities that every machining centre for the doors & windows industry should have.This machine is equipped with a rotating table and 6 sturdy clamps for handling aluminium and PVC profiles. Created to fully meet the needs of the window and door industry. A working space of 130 x 150 mm allows for handling profiles up to 3.2 meters.The worktable can be rotated from +90° to -90°. Central 6-position tool changer contains both disc cutters and tools. CNC interface is easy and intuitive It is a perfect CNC machine tool for the windowmakers willing to make their work easier and more productive

https://youtu.be/mllTAgw9StE

1. Equipment Features

1. Suitable for drilling, milling, tapping, round holes, special-shaped holes, plane engraving and other aluminum alloy profiles processing;

2. The system adopts CNC system, equipped with professional CAD-CAM programming software, and CAD drawings can be imported into the system conveniently and easily;

3. The Italian Olispeed 9kw spindle is adopted, the maximum speed is 24000 rpm, and the tapping effect of the German L+B high-end encoder is stable, reliable and safe;

4. The X-axis adopts high-precision helical gear and helical rack drive, and the Y-axis and Z-axis use high-precision ball screw drive, which ensures stable transmission;

5. Automatically convert and process G codes through programming software, simple operation and high work efficiency;

6. A drawer-type 6-bit tool magazine can be customized to add a saw blade for end milling processing to achieve uninterrupted continuous processing;

7. The worktable is turned over 180°, -90°～0°～+90°, and the profile can be processed on three sides by one clamping. When processing deep through holes (special-shaped holes), deep hole processing can be realized by turning the worktable.

2.Mechanical details and after working samples

1. LCD Operator Screen

Have CAM software for programming ; Have function of remote control. Can connect with window door software such as Klaes etc

2. Spindle:

9KW Italy Olispeed

3.Worktable

The worktable can be turned 180 degrees, and one clamping can achieve high processing efficiency on three sides.

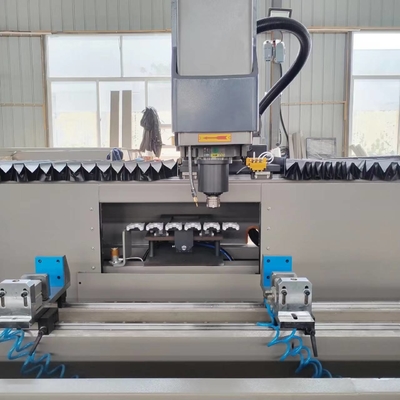

4.Tool magazine

6 tools, can be changed automatically. A saw blade can be custom fitted for end milling functions.

5.After working sample

3.Other products

4. Our services

1.Provide free training when come to factory study.

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.

Because of Covid-19, we provide:

1. Before delivery: Machine operate manual, program software user manual and English videos.

2. Before delivery: Face to face video training online between your operator and our engineer.

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Machine Operate Manual Will Be Provided

Machine Operate Video Will Be Provided

5.Packaging Details

1.  Inside is plastic film.

2.  Under the equipment is the iron tray fixed, or choose wooden box packing

3.  Can also be based on customer needs for packaging QingDao Port

6. Any Questions?

1. Why is it called 3 axes machining centre ? What are the functions?

2. What are the advantages of 3 axes?

3. Are there training instructions?

4. How long is the warranty?

5. Can be customized according to my needs?

6. What brand are the accessories?

If you also have these questions, you can contact me for more details.
