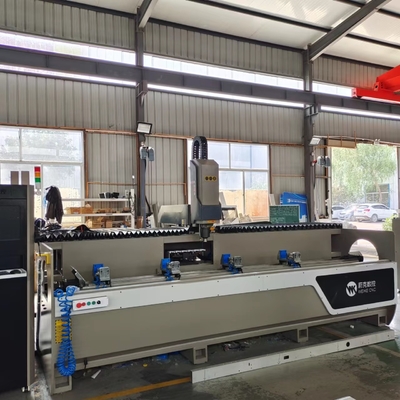

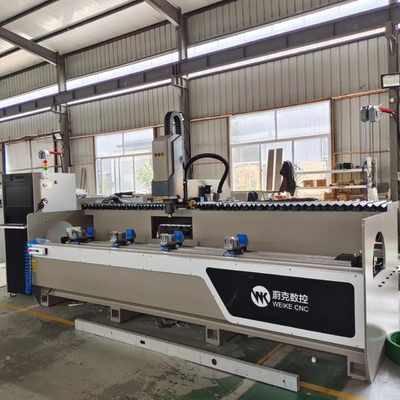

3200mm 3000mm Aluminium UPVC Vertical Spindle CNC Machining Centre window door curtain wall making machine

WSZH-CNC-3200 3-axis CNC machining center with capabilities that every machining centre for the doors & windows industry should have.This machine is equipped with a rotating table and 6 sturdy clamps for handling aluminium and PVC profiles. Created to fully meet the needs of the window and door industry. A working space of 150 * 150 mm allows for handling profiles up to 3.2 meters.The worktable can be rotated from +90° to -90°. Central 6-position tool changer contains both disc cutters and tools. CNC interface is easy and intuitive It is a perfect CNC machine tool for the windowmakers willing to make their work easier and more productive

https://youtu.be/mllTAgw9StE

1. Equipment Features

1. Vertical spindle CNC machining centre;

2. Axes drive system is consisting of a servo controller and a brushless DC servomotor. Position is tracked by an incremental encoder integrated in the drive motor;

3. By using the disc cutter, it is possible to carry out end-milling operations on both the ends of the work piece;

4. Milling operations are performed with linear and circular interpolation of the X-Y-Z axes;

5. Pneumatically operated flipping reference stops;

6. Automatic and fast tool changing by using a tool magazine located in the middle of the machine in an embedded compartment. It can store 6 tools for milling, threading, end-milling as well as angle aggregates. Additional tool holders available as optionals;

7. Tool cooling via Minimum Quantity Lubrication;

8. Frontal safety door with increased visibility of the machining area.

2.Mechanical details and after working samples

1. LCD Operator Screen

Have CAM software for programming ; Have function of remote control. Can connect with window door software such as Klaes etc

2. Spindle:

9KW Italy Olispeed

3.Worktable

The worktable can be turned 180 degrees, and one clamping can achieve high processing efficiency on three sides.

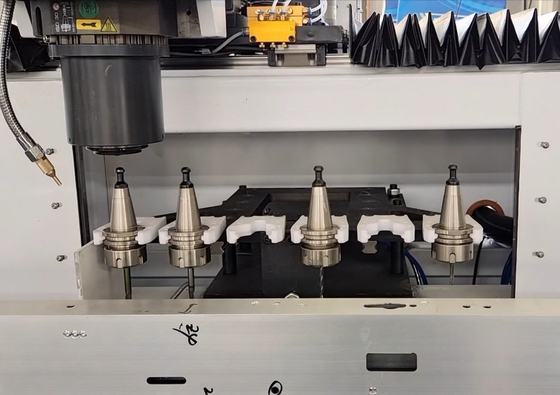

4.Tool magazine

6 tools, can be changed automatically. A saw blade can be custom fitted for end milling functions.

5.After working sample

3.Other products

4. Our services

1.Provide free training when come to factory study.

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.

Because of Covid-19, we provide:

1. Before delivery: Machine operate manual, program software user manual and English videos.

2. Before delivery: Face to face video training online between your operator and our engineer.

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Machine Operate Manual Will Be Provided

Machine Operate Video Will Be Provided

5.Packaging Details

1.  Inside is plastic film.

2.  Under the equipment is the iron tray fixed, or choose wooden box packing

3.  Can also be based on customer needs for packaging QingDao Port

6. Any Questions?

1. Why is it called 3 axes machining centre ? What are the functions?

2. What are the advantages of 3 axes?

3. Are there training instructions?

4. How long is the warranty?

5. Can be customized according to my needs?

6. What brand are the accessories?

If you also have these questions, you can contact me for more details.

WEIKE provide machine

More important is provide

Solutions
