Aluminum Door And Window Manufacturing Machine Supplier Aluminum Profile Drilling Milling Machine CNC Processing Center

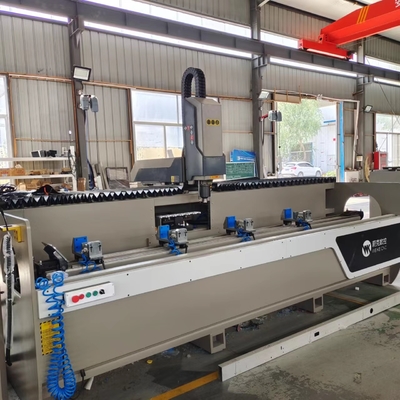

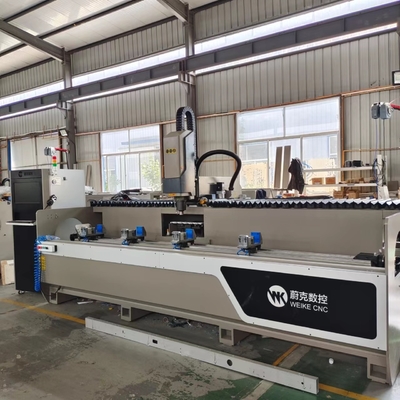

WSZH-CNC-3200 3-axis CNC machining center with capabilities that every machining centre for the doors & windows industry should have.This machine is equipped with a rotating table and 6 sturdy clamps for handling aluminium and PVC profiles. Created to fully meet the needs of the window and door industry. A working space of 150 * 150 mm allows for handling profiles up to 3.2 meters.The worktable can be rotated from +90° to -90°. Central 6-position tool changer contains both disc cutters and tools. CNC interface is easy and intuitive It is a perfect CNC machine tool for the windowmakers willing to make their work easier and more productive

https://youtu.be/mllTAgw9StE

1. Equipment Features

1. It is suitable for processing industrial aluminum alloy profiles, round holes, slot holes, key holes, special-shaped holes, etc. of aluminum alloy profiles for doors and windows and curtain walls, as well as milling, chamfering, plane engraving, tapping and other processes of aluminum profiles.

2. The spindle adopts the air-cooled electric spindle imported from Italy, with a power of 9KW and a maximum speed of 24000 rpm. The tapping effect of the German L+B high-end encoder is stable and reliable, with good safety, high reliability, high milling speed, high production efficiency, and high processing efficiency. High precision.

3. The German PA industrial CNC system is equipped with professional CAD-CAM programming software, and the CAD drawings can be imported into the system conveniently and conveniently.

4. The drive servo motor adopts the Japanese YASIKAWA (Yaskawa) brand servo motor, which is guaranteed to be genuine, with high speed, accurate positioning, self-adaptive fuselage rigidity adjustment, and low noise.

5. The worktable is turned 180°, -90°～0°～+90°, and the profile can be processed on three sides by one clamping. When processing deep through holes (special-shaped holes), deep hole processing can be realized by turning the worktable, which improves efficiency, Good quality.

6. The lubricating unit adopts an automatic lubricating system, which is lubricated at precise time and effectively keeps the lubrication of the equipment parts running stably.

2.Mechanical details and after working samples

1. LCD Operator Screen

Have CAM software for programming ; Have function of remote control. Can connect with window door software such as Klaes etc

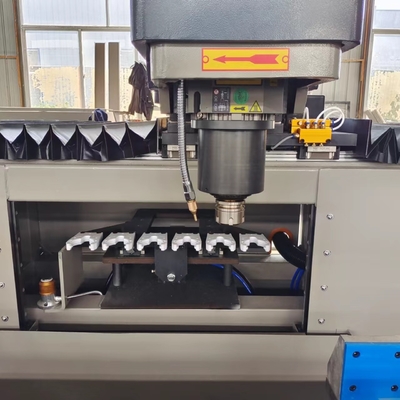

2. Spindle:

9KW Italy Olispeed

3.Worktable

The worktable can be turned 180 degrees, and one clamping can achieve high processing efficiency on three sides.

4.Tool magazine

6 tools, can be changed automatically. A saw blade can be custom fitted for end milling functions.

5.After working sample

3.Other products

4. Our services

1.Provide free training when come to factory study.

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.

Because of Covid-19, we provide:

1. Before delivery: Machine operate manual, program software user manual and English videos.

2. Before delivery: Face to face video training online between your operator and our engineer.

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Machine Operate Manual Will Be Provided

Machine Operate Video Will Be Provided

5.Packaging Details

1.  Inside is plastic film.

2.  Under the equipment is the iron tray fixed, or choose wooden box packing

3.  Can also be based on customer needs for packaging QingDao Port

6. Any Questions?

1. Why is it called 3 axes machining centre ? What are the functions?

2. What are the advantages of 3 axes?

3. Are there training instructions?

4. How long is the warranty?

5. Can be customized according to my needs?

6. What brand are the accessories?

If you also have these questions, you can contact me for more details.
