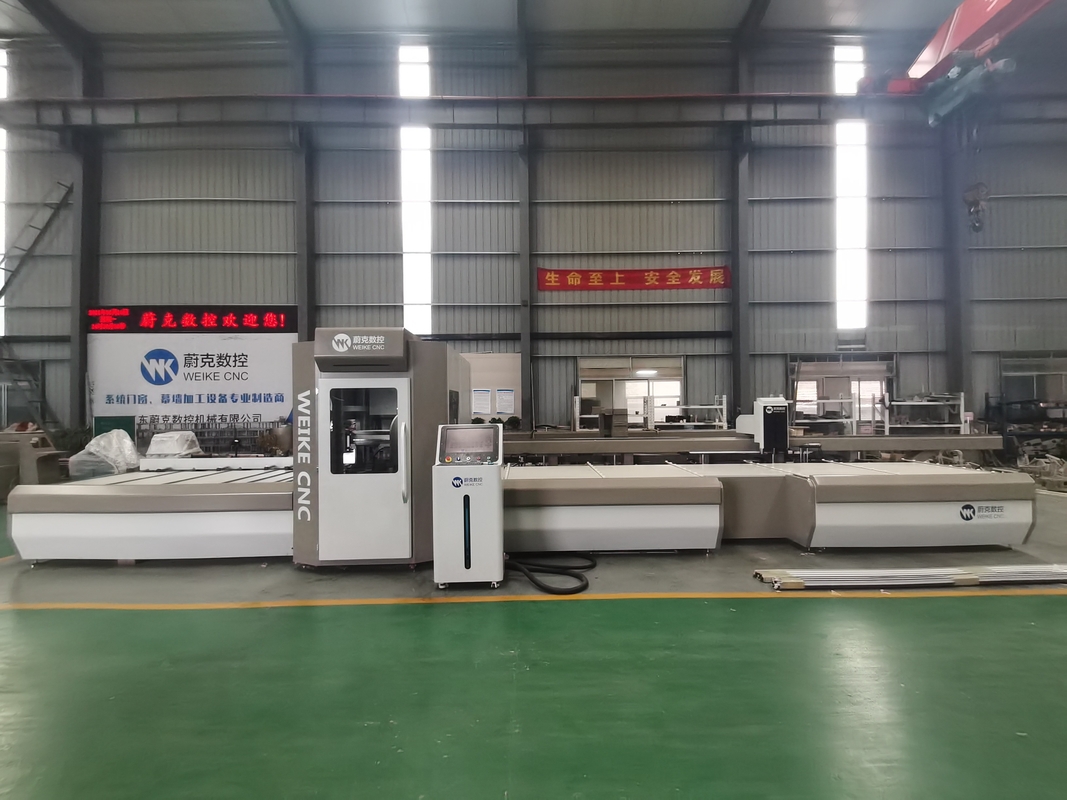

Aluminum Window And Door Machines Aluminum Cutting Center

Aluminum CNC cutting centre s suitable for high-efficiency sawing processing of aluminum door and window profiles, and can simultaneously perform 45°, 90°, and 45° and 90° combined angle sawing processing of profiles. The machine is designed for cutting PVC profiles with maximum cutting speed and highest quality. The machine performs the operation of profile loading from the bars stock, cutting and unloading of piece, in complete autonomy and without the assistance of the operator.

◎Power supply: 380V/50Hz
◎Total power of the whole machine: 14.6KW
◎ Spindle motor speed: 3000r/min
◎Working air pressure: 0.5～0.8MPa
◎Air consumption: 200L/min
◎Sawing length range: 300mm~6500mm
◎Saw profile section size (width x height): 175mm x 150mm
◎Sawing accuracy: ±0.1mm
◎Sawing angle: 45°, 90°
◎Saw blade specification: Φ550mm
◎Feeding speed: 0~50M
◎Feeding return speed: 0~50M
◎Saw blade lifting speed: 0~10M
◎Lubrication/cooling system: automatic lubrication/micro-atomization cooling
◎Dimensions: 13500×3000×2100mm
◎Weight: 5000kg

1. Feartures

1.Worktable auto feeding and clamping continuous.

2.High precision linear guide-way.

3.Mechanical arm,high precision gear and rack make feeding accuracy.

4.Blade connected directly with imported motor.To cut smoothly and steadly and high precision.

5.Cutting motion is servo controlled.Cutting efficiency and quality are much better.

6.SIEMENS control system makes machine working steady and reliable.

7.±45° or 90° cutting is finished continuous and effciency.

8.Totally closed design,operator protect.

9.bar code printer

2.Details

1. Aluminum cutting centre is 13.5 meters long, 3 meters wide, 2.6 meters high, and weighs 5 tons. The whole machine is divided into feeding section, manipulator feeding, sawing section and unloading section.

2. Adopt German industrial PA system. Support remote assistance

It can be connected with door and window software (German KLAES, Chuango, Duter, Xingel, Schüco and other domestic and foreign door and window and curtain wall software) to support connected intelligent production.

3. Cutting unit structure innovation

Saw blade eight cross design, continuous feeding without pulling Save time, improve efficiency, reduce error and wear

Feeding speed: 0~80M
Discharge speed: 10-12S/piece
Saw blade lifting speed: 0~ 60M

4. Equipped with barcode printer
Real-time printing of material identification

5. After working samples

4. Workshop showing

Our Service

1.Provide free training when come to factory study.

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.

Because of Covid-19, we provide:

1. Before delivery: Machine operate manual, program software user manual and English videos.

2. Before delivery: Face to face video training online between your operator and our engineer.

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Machine Operate Manual Will Be Provided

Machine Operate Video Will Be Provided

The company strives to forge ahead and pursue excellence in the development concept, constantly strengthening the core competitiveness of the industry, striving to achieve leapfrog development, and is committed to creating a world-class professional supplier serving the building energy-saving doors and Windows industry

If you are interested in our machine,please send inquiry for me.
