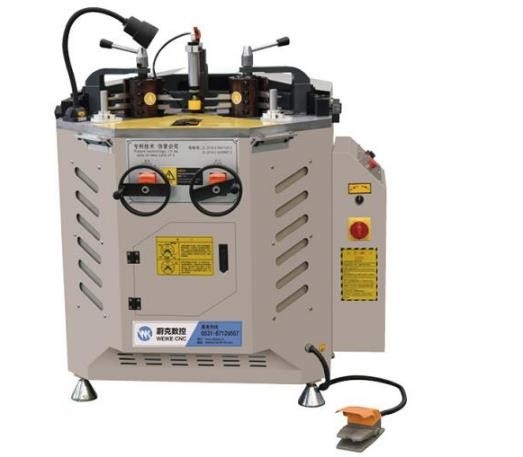

140mm Aluminium Corner Crimping Machine With 3 Tools Magazine

140mm Aluminium Corner Crimping Machine With 3 Tools Magazine

WZJ-140H corner crimping machine is a special equipment for the production of aluminum doors and windows, suitable for 90 degree corner connection of corner code structure aluminum doors and windows. This machine is a new model developed on the basis of absorbing the advantages of similar foreign products. The machine adopts pneumatic, electric, hydraulic and operation control. Due to the new structure of mechanical linkage, the influence of oil pressure fluctuation on the quality of the group angle is eliminated, the crimping is completely synchronized, the crimping depth is more consistent, and the 90-degree angle of the corner crimping is more accurate. In addition, the front and rear positioning is adjustable up and down, and the positioning device with adjustable front and rear distance is suitable for processing profiles of different cross-sectional shapes and sizes.

1. Feartures

●  Crimping Machine For Closing Corners Of Aluminium Profiles is a special equipment for the production of high grade doors and windows, and is suitable for 90 degree angle connection of corner structure aluminum doors and windows.

● The power is controlled by the hydraulic system, and the oil tank adopts the circulating air cooling device,which makes the work stable and reliable.

● The steel synchronous feed of left and right punch can avoid the useless deformation in the process of forming Angle and make the connection of window Angle more firm.

● Synchronous feed mechanism, using counter to adjust the breaking depth of Angle knife to make the machine easy to adjust.

● It is more convenient to use lifting device of locating block to put and take profile. It can be equipped with a single multi point Angle cutter, so that the heat insulation broken bridge aluminum doors and Windows Angle more reliable.

Technical Parameters

◎Model: WZJ-140H
◎Power supply: 380V 50Hz
◎Power: 3KW (horizontal air cooling)
◎Rated pressure: 20MPa
◎Total group angular pressure: 60KN
◎Working air pressure: 0.6-0.8MPa
◎Air consumption: 2.5 L/min
◎ Fuel tank capacity: 20L
◎Processing profile height (maximum) 140 mm
◎Dimensions: 900×1200×1100mm

2.Details

1.Worktable:

Extra-large and extra-wide worktable, covered with PVC, to better protect the profile from being scratched

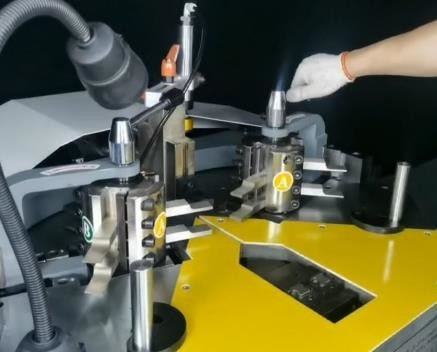

2.3 tools magazine Corner cutter

Rotation to adjust different tools, convenient and fast

3.Positioning block

Automatic lifting

4. control panel

5.Electric Components:

French Schneider

6. After working samples


3. Other products



4. Workshop showing

5. Our services

1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.

2. Provide free training when come to factory study.

Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.

2. Before delivery: Face to face video training online between your operator and our engineer.

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Machine Operate Manual Will Be Provided

Machine Operate Video Will Be Provided

6.Packaging Details

1.  Inside is plastic film.

2.  Under the equipment is the iron tray fixed, or choose wooden box packing

3.  Can also be based on customer needs for packaging QingDao Port
