Product Details:
|
| Power Supply: | 380V/50HZ (Customized) | Power: | 12KW |
|---|---|---|---|
| X Axis Journey: | 3200mm | Y Axis Journey: | 400mm |
| Z Axis Journey: | 300mm | X Axis Speed: | 60M/min |
| Y/Z Axis Speed: | 40M/min | Overall Dimension: | 4000*2000*2600mm |
| Tool Magazine: | 6/8 Automatic Tool Changer | Type: | Drilling Milling |
| Product Name: | CNC Machining Center For Drilling Milling Holes | ||
| Highlight: | 3 axis aluminum machining center,cnc door making aluminum machining center,3 axis aluminum profile machining center |
||

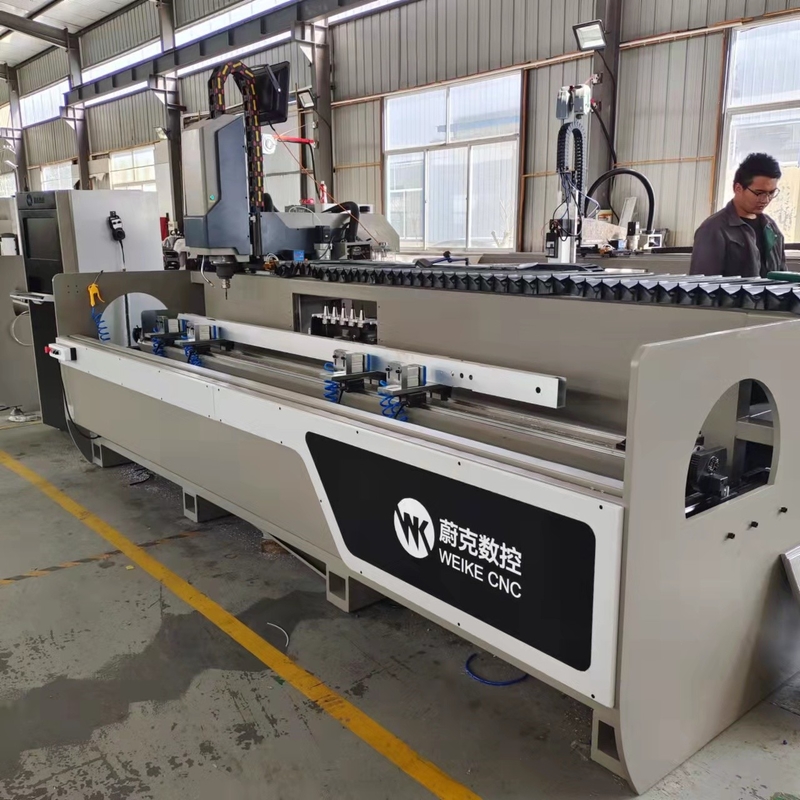

Working center for aluminium profiles with 3 controlled, fully automatic management
of machining such as drilling, milling,tapping, grooving, notching,saw milling etc.
Equipment Features

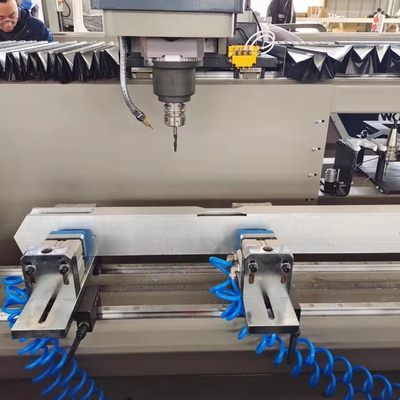

Used for drilling milling round holes, slots, key-holes etc on aluminum profile, suitable for
window-door making and curtain wall making area. It is also suitable for processing milling,
chamfering, engraving plane surface and other procedure.
2. Machine Parameter:
| Parameter | |
| Model: | WSZ-CNC |
| X-Axis stroke | 2500-7000mm |
| Y-Axis stroke: | 400 mm |
| Z-Axis stroke: | 300 mm |
| SPINDLE | |
| Spindle speed: | 24000 r.p.m |
| Spindle taper: | ISO-30 |
| TOOLS | ER-32 |
| Tool changer format: | Linear Type |

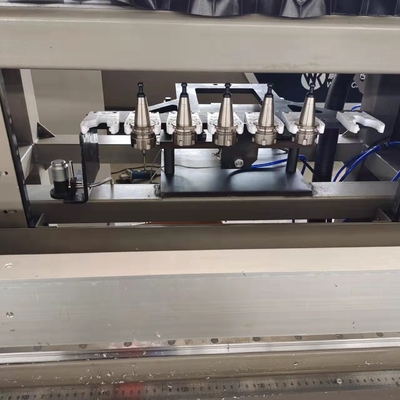

| Tool capacity: | 6 Sets |
| MOVING SPEED | |
| X-Axis moving speed: | 60 m/min |
| Y-Axis moving speed: | 20 m/min |
| Z-Axis moving speed: | 13.5 m/min |
| Feeding Speed: | 15000mm/min |
| POWER OF MOTOR | |
| Spindle driven motor: | 9.6 kw |
| X/Y/Z driven motor: | 1.0/1.0/0.75 kw |
| LUBRICATING SYSTEM | |
| Cooling system: | Spraying cooling system |
| Lubricating system: | Grease |
1.X-axis working length 3 m (118 in) Option
2.Y-axis travel 300 mm (11.81 in)
3.Spindle speed 24,000 rpm
4.Spindle Motor 9KW
5.Tool Holder ER32
6.Equipped with Air Clamps
7.Automatic Lubrication System
8.Mist Lubrication System
9.Mitsubishi Servo Drives/Motors
10.X, Y and Z axes are servo controlled
Optional Equipment
Automatic Moving Fixture
The optional length on Xaxis can work with 2500mm 3200mm 5500mm 6000mm etc.
barcode reader
|
Power Supply |
Power |
Air Pressure |
Rotating Speed | X Axis Journey | Y Axis Journey | Z Axis Journey | X Axis Speed | Y/Z Axis Speed | Weight |
| 380V/220V/415V/440V | 12KW | 0.6~0.8MPa | 24000r/m |
3200mm (Option) |
400mm | 300mm | 60M/min | 40M/min | 2370KG |
Our Service
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation,
Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control
your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
