5 Axis Aluminum Machining Center Cnc Processing Profile

5 Axis Aluminum Machining Center Cnc Processing Profile
5 Axis Aluminum Machining Center Cnc Processing Profile 5 Axis Aluminum Machining Center Cnc Processing Profile 5 Axis Aluminum Machining Center Cnc Processing Profile 5 Axis Aluminum Machining Center Cnc Processing Profile

Large Image :  5 Axis Aluminum Machining Center Cnc Processing Profile

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: WSJ5-CNC-7000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 134000USD
Packaging Details: Plywood Box
Delivery Time: 60 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 2 Sets / Month

5 Axis Aluminum Machining Center Cnc Processing Profile

Description
X Axis Range: 7000mm Y Axis Range: 1000mm
Z Axis Range: 550mm B Axis Rotatio±185°n Range: +-185 Degree
C Axis Rotation Range: +- 320 Degree Automatic: Yes
Name: Aluminum 5 Axis CNC Machining Center
Highlight:

5 axis aluminum machining center

,

cnc processing profile aluminum machining center

,

5 axis aluminum profile machining center

5 Axis CNC Machines For Cutting Drilling Milling Tapping Holes on Aluminum Profile
This machine is designed for automatic cutting, milling, drilling, face milling, tenon milling,

keyhole milling, slot milling, channel milling, installation hole milling and other multi-process

processes to meet customers' needs for door, window and wall curtain. , and solariums and

aluminum industry.
5 Axis Aluminum Machining Center Cnc Processing Profile 0
Main Feature:

●The machine can realize the clamping of raw materials at the same time, and according

to the processing needs, can complete the cut,tenon milling end, milling keyhole slot, barrel

channel, air pressure equalizing hole, hole installation and other multi-process processes to

complete the To meet customers' requirements for doors, windows, curtain walls and conservatories. ,

Customization of industrial aluminum profiles
.
●It is suitable for processing complex parts such as various aluminum, copper, PVC and industrial

profiles.
●The use of a traveling beam and traveling column gantry frame structure makes the's operation

more stable and improves the machining rigidity of the machine tool.
●Imported high-quality servo motors, ball screws, linear guide pairs and bearings are used to ensure

that the equipment has high processing precision, high stability and reliability.The feed motion is

pre-stretched to ensure the stability of machining accuracy.

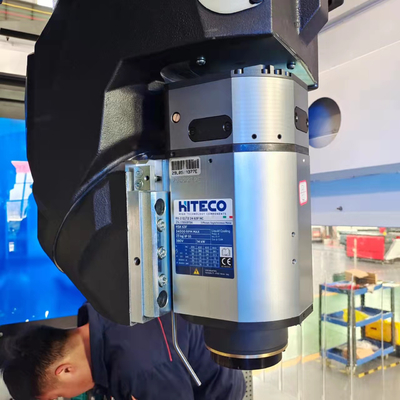

●This machine uses an imported five-axis milling head, which can do all angle machining on all

surfaces except the bottom. Row tool type automatic tool change, optional vertical disc tool magazine.
●The quantitative synchronization centralized automatic feed lubrication method ensures the precision

stability of the machine tool.
●The pneumatic clamping workbench is used to increase the speed of loading and unloading .Optional

T-shaped workbench.
●Adopt the security protection function to ensure security.


X-way range 7000mm (Option)
Y-way range 1000mm
Z-way range 550mm
B axis rotation range +-185
C axis rotation range +-320
Spindle speed 24000r/mln
Power 12KW
SptitSe taper HSK-63F
Tool storerocm type ESS
Tool magazine capacity 12
Lubricating system Automatic
X-way moving speed O~60n/mln
Y/Z-way moving speed 0~30m/mln
B axis working speed Max. 7
C axis working speed Max. 7
Voltage 380V/50HZ
Air pressure 0.5~0.8MPa
Ftoor space 9500x3000mm

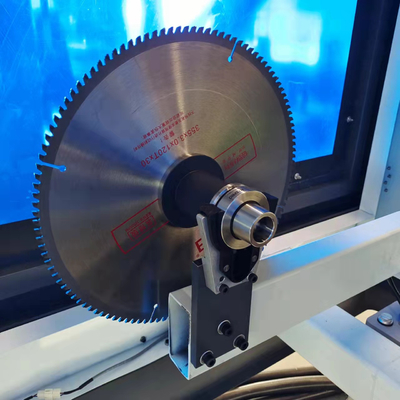

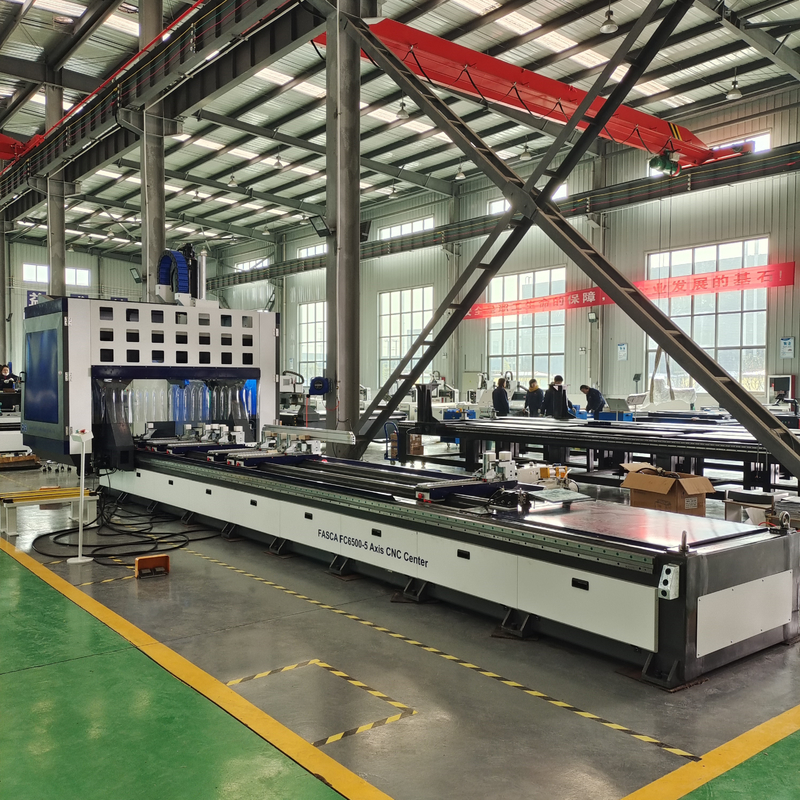

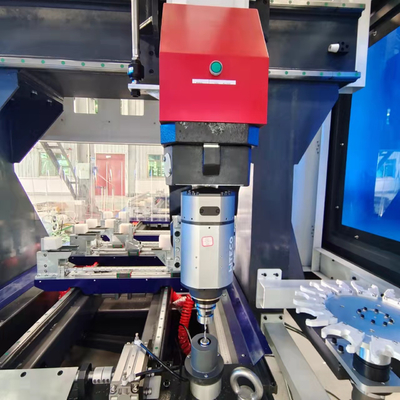

Machine Details:
5 Axis Aluminum Machining Center Cnc Processing Profile 1

5 Axis Aluminum Machining Center Cnc Processing Profile 2

5 Axis Aluminum Machining Center Cnc Processing Profile 3
Company Introduction


5 Axis Aluminum Machining Center Cnc Processing Profile 45 Axis Aluminum Machining Center Cnc Processing Profile 5

Machine Delivery

5 Axis Aluminum Machining Center Cnc Processing Profile 6
Provide Service:
1. Provide free training when come to factory study
2. If need engineer go to oversea training: Client afford transportation and accommodation.
Because of Covid-19, we can also provide:
1. Before delivery: 5 Axis Machine operate manual, program software user manual as well as
Chinese and English videos
2. Before delivery: Face to face video training online between your operator and our engineer
(Can speak English)
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control
your machine to show you how to work.
