Product Details:
|
| X Axis Journey: | 6500mm | English Manual: | Provided |
|---|---|---|---|
| Video Training: | Provided | Remote Control: | Provided |
| Weight: | 5600KG | Suitable Material: | Aluminum And PVC |

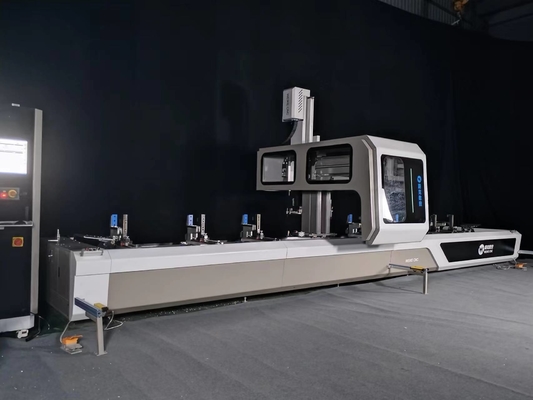

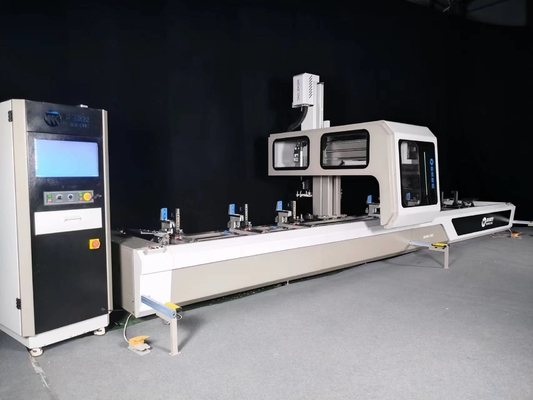

| Material: | Aluminum | Product Name: | Aluminum Window Door 4Axis Machine 4Axis CNC Machining Center For Sale |
| Highlight: | 4 axis processing aluminum machining center,curtain wall profile aluminum machining center,window door aluminum profile machining center |
||
Equipment Features
1. This machine can achieve a material clamping, According to processing needs, it can complete
multiprocess processing such as milling lock hole grooves, flow grooves, air pressure balance holes,
installation holes, etc.
2. This machine adopts Shenzhen Big family (PA) CNC machine tool system, can complete the continuous
automatic milling of different sizes of profiles, powerful function. CAD drawings can be imported into the
system is convenient and easy to connect with Klaes, Chuanggao, Dutt, New Gerschuge, Changfeng and
other domestic and foreign doors and Windows. Curtain wall system software.
3. Suitable for all kinds of aluminum, copper, PVC, industrial profiles, building curtain wall, sun room and
other complex parts processing.
4. Single arm frame structure of moving beam and column is adopted to make the operation more stable
and improve the machining rigidity of the machine tool.
5. Adopt highquality imported servo motor, ball screw, linear guide pair and bearing to ensure that the
equipment has higher processing accuracy, high stability and reliability. The feed movement ensures the
stability of machining accuracy by pre-stretching.

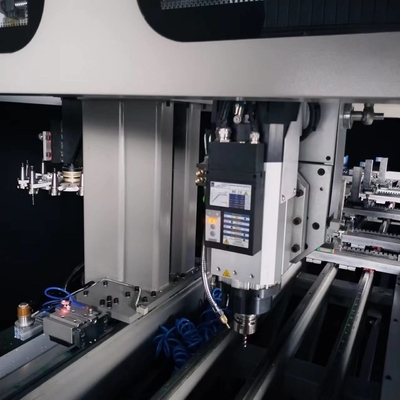

6. This machine adopts imported fouraxis milling head, which can complete the processing of the other
three surfaces except the bottom surface. Vertical disc type tool magazine (12 positions).
7. The central centralized automatic feeding lubrication with quantitative timing ensures the stability of
machine accuracy.

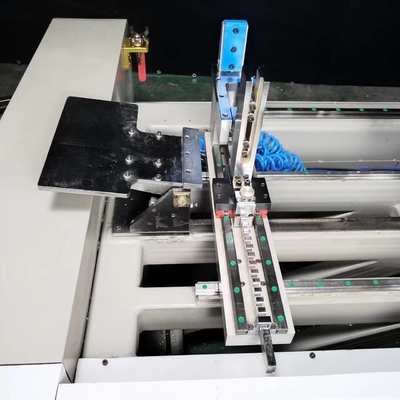

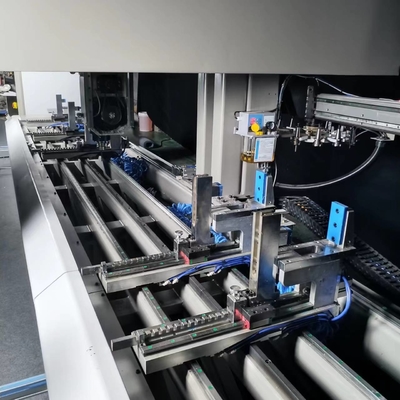

8. Adopt pneumatic clamping table to improve loading and unloading speed. Optional T table.
9. The fuselage adopts grating safety protection function to ensure safe operation.
| Product Parameter | |
| Tools magazine | 12 Milling drilling bits |
| Table structure | Heavy duty welded machine body with clamping tooling on it special for clamping aluminum profile |
| Working Size | X/Y/Z> 7000*400*300mm |
| Maximum speed | 24000/min |
| Processing length | 7000mm |
| Processing width | 400mm |
| Processing height | 300mm |

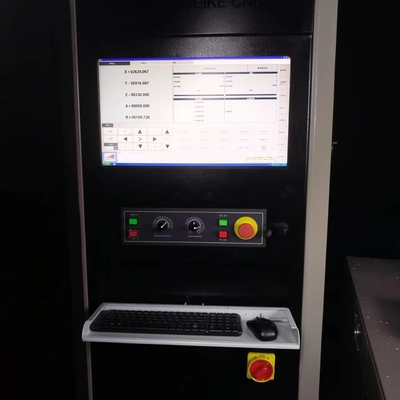

| Control System | Germany HANS PA industrial CNC system is equipped with professional CAD-CAM programming software |
| Lubrication system | Auto lubrication pump |
| Tool setting | Automatic tool setting |
| Electric Components | French Schneider AC contactor, Taiwan Airtac electromagnetic valve |
| Working voltage | 380V 3Ph 50Hz |
| Size | 9500*2500*2800mm |
| Weight | 4500kg (more or less) |
1. You can choose different working area machine from 500mm to 7000mm length
2.Other products
3.Mechanical details and after working samples
Drilling and Milling Round holes, Square holes, Slots, Key-holes, different shape holes, Counterbore,
double layer holes, Multi-layer holes. Cutting different angle profiles, Can chamfering, engraving plane
surface and diferent shape aluminum profile.
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation,
Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control
your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
Shandong WEIKE CNC Machinery Co., LTD., We are professional development, production, sales of
aluminum doors and Windows curtain wall equipment production enterprises, production, sales,
service in one of the one-stop comprehensive service system company.
If you are interested in our machine,please send inquiry for me.
